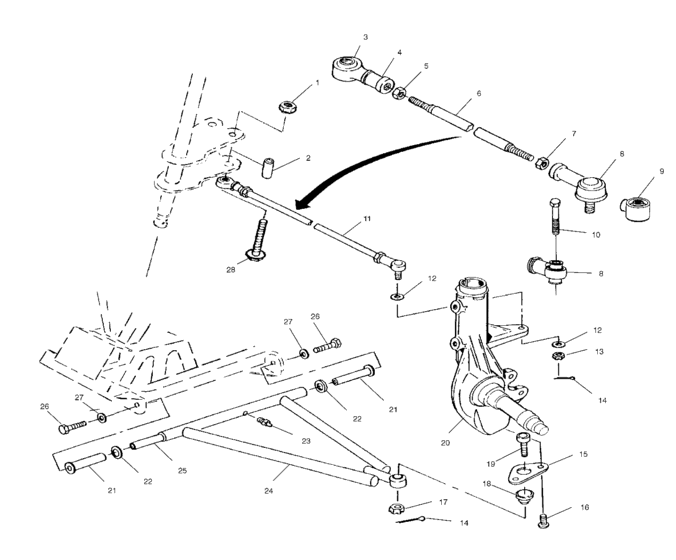

A-arm/strut mounting (A00CB32AA) Diagram Polaris MAGNUM 325 2X4
- Model code
- A00CB32AA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
2
|
2
5333367 Bushing |
5333367 |
US $8.17 |
||
|
3
|
3
5411291
Boot, seal
|
5411291 |
— | ||
| replacement | |||||
|
3
|
3
5412928 Boot-seal,rod end,1/2 in |
5412928 |
US $11.81 |
||
|
4
|
4
7061034
Rod end, rh
|
7061034 |
— | ||
| replacement | |||||
|
4
|
4
7061139 Rod-end,3/8,1/2-20rh,44deg |
7061139 |
US $59.06 |
||
|
5
|
5
7542711 Nut-jam(10)10; |
7542711 |
US $0.79 |
||
|
6
|
6
5020927 Rod,tie |
5020927 |
US $35.67 |
||
|
7
|
7
7547028
Nut,jam,lh(10)
10; |
7547028 |
— | ||
|
8
|
8
7061033
Rod end,lh
If built before 8/16/99; |
7061033 |
— | ||
| replacement | |||||
|
8
|
8
2201743 Rod end,kit,10mm outer **If built before 8/16/99; |
2201743 |
US $51.21 |
||
|
8
|
8
7061054
Rod, end, lh
If built after 8/16/99; |
7061054 |
— | ||
| replacement | |||||
|
8
|
8
7061138 Rod-end,10mm,1/2-20lh,42 degIf built after 8/16/99; |
7061138 |
US $59.06 |
||
|
9
|
9
5411920
Boot, seal
|
5411920 |
— | ||
| replacement | |||||
|
9
|
9
5412929 Boot-seal,rod end,10mm |
5412929 |
US $11.81 |
||
|
10
|
10
7517674
Bolt
|
7517674 |
— | ||
| replacement | |||||
|
10
|
10
7517909 Bolt-m10x1,25x65,hx wash hd |
7517909 |
US $7.68 |
||
|
11
|
11
1820566
Tierod asm,1/2-20x14.00
Incl. 3-8;If built before 8/16/99; |
1820566 |
— | ||
| replacement | |||||
|
11
|
11
2201742 Tie rod,kit,14,0,2x4Incl. 3-8;If built before 8/16/99; |
2201742 |
US $127.05 |
||
|
11
|
11
1820806
Asm., tie rod
Incl. 3-8;If built after 8/16/99; |
1820806 |
— | ||
|
12
|
12
7555806 Washer,flat(10)10;If built before 8/16/99; |
7555806 |
US $13.10 |
||
|
12
|
12
7556099 Washer (10)If built after 8/16/99; |
7556099 |
US $1.89 |
||
|
13
|
13
7546904 Nut, castle(10)10; |
7546904 |
US $3.26 |
||
|
14
|
14
7661203 Pin,cotter(10)10; |
7661203 |
US $26.30 |
||
|
15
|
15
5240717
Bracket,balljoint
|
5240717 |
— | ||
|
16
|
16
7512284 Bolt, socket(10)10; |
7512284 |
US $1.96 |
||
|
17
|
17
7542438 Nut, castle(10)10; |
7542438 |
US $2.63 |
||
|
18
|
18
5410548
Boot, rubber
|
5410548 |
— | ||
| replacement | |||||
|
18
|
18
5412658 Boot-balljoint,greaseless,strt |
5412658 |
US $6.56 |
||
|
19
|
19
7080673
Joint, ball
|
7080673 |
— | ||
| replacement | |||||
|
19
|
19
7080927
Joint, ball
|
7080927 |
— | ||
|
21
|
21
5433066
Bushing, a-arm, long
|
5433066 |
— | ||
| replacement | |||||
|
21
|
21
5436973 Bushing-a-arm,long,102,36mm |
5436973 |
US $10.83 |
||
|
22
|
22
5020677 Bushing,a-arm spacer(10)10; |
5020677 |
US $118.10 |
||
|
23
|
23
7080433 Fitting,lubrication,threaded(1010; |
7080433 |
US $5.25 |
||
|
24
|
24
2201601
Kit, a-frame, lh
1541454;Incl. 21-23,26,27; |
2201601 |
— | ||
|
24
|
24
2201602
Kit, a-frame, rh
1541455;Incl. 21-23,26,27; |
2201602 |
— | ||
|
25
|
25
5020681
Shaft, a-arm
|
5020681 |
— | ||
|
26
|
26
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
27
|
27
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
28
|
28
7517527 Bolt10; |
7517527 |
US $14.09 |
||
