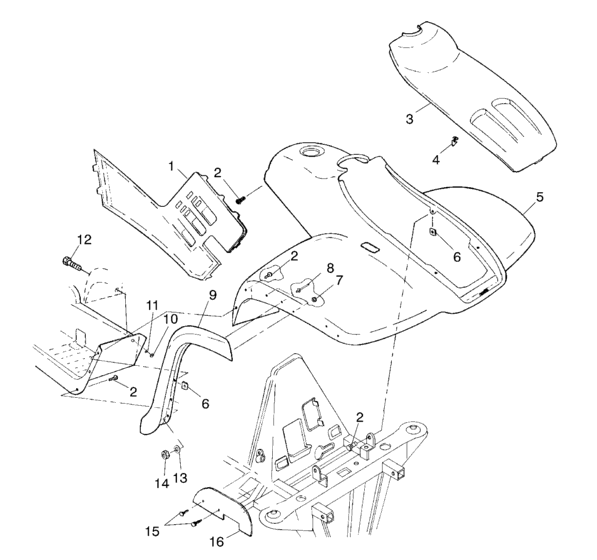

Front cab (A00CB32AA) Diagram Polaris MAGNUM 325 2X4
- Model code
- A00CB32AA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2632084-157
Panel/foam asm,lh,xped,bon blu
If built before 3/27/00; |
2632084-157 |
— | ||
|
1
|
1
2632284-157
Asm-panel/foam,lh,bon blue
If built after 3/27/00; |
2632284-157 |
— | ||
|
1
|
1
2632101-157 Panel asm/foil,mod,rh bon blu |
2632101-157 |
US $122.12 |
||
|
2
|
2
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
3
|
3
5432088-157
Cover,front,bon,blue
|
5432088-157 |
— | ||
|
4
|
4
7670085 Clip,spring(10)10; |
7670085 |
US $1.77 |
||
|
5
|
5
2632144-157
Cab,foam,front,bon blue
|
2632144-157 |
— | ||
|
6
|
6
7670057 Nut, speed(10) *10; |
7670057 |
US $2.63 |
||
|
7
|
7
7670068 Nut, push-on(10) *10; |
7670068 |
US $0.79 |
||
|
8
|
8
7661645 Rivet(50) *50; |
7661645 |
US $1.89 |
||
|
9
|
9
5431798
Mudguard,lh,frt.blk.
|
5431798 |
— | ||
| replacement | |||||
|
9
|
9
5431798-070 Guard-mudflap,front,black,lh |
5431798-070 |
US $56.14 |
||
|
9
|
9
5431799
Mudguard,rh,frt.blk.
|
5431799 |
— | ||
| replacement | |||||
|
9
|
9
5431799-070 Guard-mudflap,front,black,rh |
5431799-070 |
US $56.14 |
||
|
10
|
10
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
11
|
11
7555792 Washer10; |
7555792 |
US $2.45 |
||
|
12
|
12
7512085
Screw
10; |
7512085 |
— | ||
| replacement | |||||
|
12
|
12
7511989
Screw
10; |
7511989 |
— | ||
|
13
|
13
7555931
Washer
10; |
7555931 |
— | ||
| replacement | |||||
|
13
|
13
7558221 Washer(10)10; |
7558221 |
US $0.79 |
||
|
14
|
14
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
15
|
15
7621509 Rivet,plasti-lock(50) *50; |
7621509 |
US $197 |
||
|
16
|
16
5811917 Shield-deflector |
5811917 |
US $9.15 |
||
