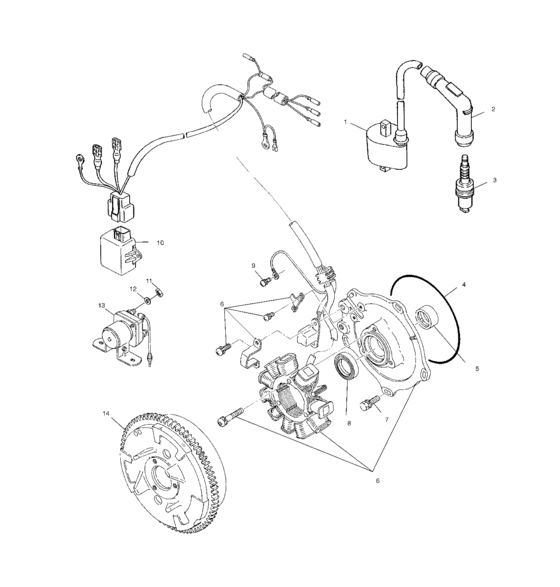

Magneto (A00CB32FA) Diagram Polaris MAGNUM 325 2X4
- Model code
- A00CB32AA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3086483
Ignition coil,asm.
Incl. 1,2; |
3086483 |
— | ||
|
1
|
1
3086484
Asm., coil, ignition
If built before 3/1/99; |
3086484 |
— | ||
| replacement | |||||
|
1
|
1
3086483
Ignition coil,asm.
If built before 3/1/99; |
3086483 |
— | ||
|
1
|
1
3086807
Coil,ignition
If built after 3/1/99; |
3086807 |
— | ||
| replacement | |||||
|
1
|
1
3086483
Ignition coil,asm.
If built after 3/1/99; |
3086483 |
— | ||
|
2
|
2
3086463
Cap,spark plug
|
3086463 |
— | ||
|
3
|
3
3084997
Plug, spark
10; |
3084997 |
— | ||
| replacement | |||||
|
3
|
3
3070172 Spark plug,bkr6e (4)10; |
3070172 |
US $3.50 |
||
|
4
|
4
3084978 O-ring |
3084978 |
US $24.43 |
||
|
5
|
5
3086460 Bearing-dry |
3086460 |
US $29.54 |
||
|
6
|
6
3086458
Plate asm.
See Footnote; |
3086458 |
— | ||
| replacement | |||||
|
6
|
6
3086904
Plate,asm
See Footnote; |
3086904 |
— | ||
|
7
|
7
3081657 Bolt&washer asm, |
3081657 |
US $2.98 |
||
|
8
|
8
3084973 Seal, oil |
3084973 |
US $35.12 |
||
|
9
|
9
3081256 Screw&washer asm(10)10;If built before 3/1/99 only; |
3081256 |
US $1.49 |
||
|
10
|
10
3086464 Cdi system |
3086464 |
US $242.66 |
||
|
11
|
11
3083073 Nut |
3083073 |
US $0.79 |
||
|
12
|
12
3080077 Washer spring(10)10; |
3080077 |
US $0.79 |
||
|
13
|
13
3085521
Switch, magnetic
|
3085521 |
— | ||
| replacement | |||||
|
13
|
13
4011335 Switch-magnetic |
4011335 |
US $70.26 |
||
|
14
|
14
3086457
Flywheel w/ring gear
|
3086457 |
— | ||
