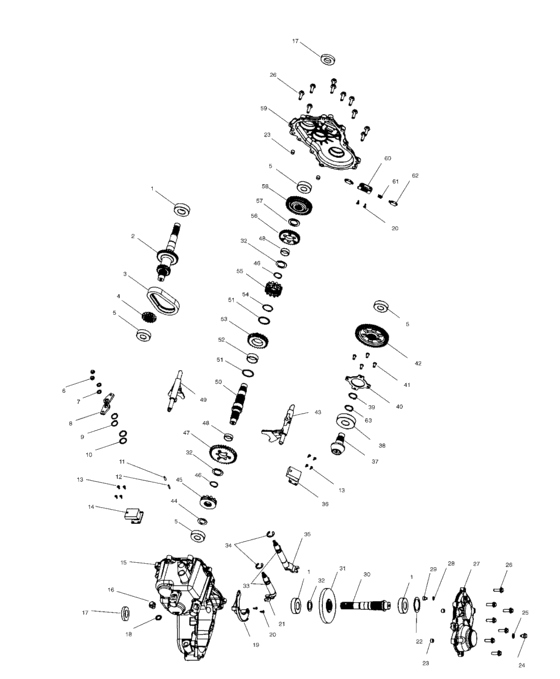

Main gearcase (A00CB32AA) Diagram Polaris MAGNUM 325 2X4
- Model code
- A00CB32CA
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233019 Bearing |
3233019 |
US $39.38 |
||
|
2
|
2
3233604
Shaft,input 31t
|
3233604 |
— | ||
|
3
|
3
3233036 Chain,silent,34p |
3233036 |
US $65.99 |
||
|
4
|
4
3233603 Gear,16t |
3233603 |
US $101.45 |
||
|
5
|
5
3233018 Bearing |
3233018 |
US $29.54 |
||
|
6
|
6
3233961 Nut-lock hex flange nylon 5/16 |
3233961 |
US $5.48 |
||
|
8
|
8
3233153 Bellcrank |
3233153 |
US $19.30 |
||
|
9
|
9
3233045 Ring,retaining |
3233045 |
US $3.26 |
||
|
10
|
10
3233040 Washer |
3233040 |
US $7.68 |
||
|
11
|
11
3233286 Plug,vent cap |
3233286 |
US $3.26 |
||
|
12
|
12
3233037 Vent |
3233037 |
US $6.41 |
||
|
13
|
13
3233749 Screw |
3233749 |
US $2.45 |
||
|
14
|
14
3234019
Switch-gear indication 3 pos
|
3234019 |
— | ||
|
15
|
15
3233902
Gearcase,rh
|
3233902 |
— | ||
|
16
|
16
3233711 Plug,oil fill |
3233711 |
US $20.69 |
||
|
17
|
17
3233788 Seal-triple lip |
3233788 |
US $30.10 |
||
|
18
|
18
3233872 Washer-nylon |
3233872 |
US $7.68 |
||
|
19
|
19
3233712
Deflector-oil
|
3233712 |
— | ||
|
20
|
20
3233747 Screw-tapping,w/lock washer |
3233747 |
US $2.45 |
||
|
21
|
21
3233627
Shift shaft
|
3233627 |
— | ||
|
22
|
22
3233611 Shim |
3233611 |
US $18.10 |
||
|
23
|
23
3233529 Pipe,knock |
3233529 |
US $8.52 |
||
|
24
|
24
3233777 Plug-hex flange |
3233777 |
US $19.30 |
||
|
25
|
25
3234035 Washer |
3234035 |
US $7.68 |
||
|
26
|
26
3233252 Screw |
3233252 |
US $8.87 |
||
|
27
|
27
3233713 Gearcase-front cover |
3233713 |
US $89.62 |
||
|
28
|
28
3233583 Shim ,450 x ,265 |
3233583 |
US $9.12 |
||
|
29
|
29
3233582 Button,thrust |
3233582 |
US $2.66 |
||
|
30
|
30
3233622
Shaft,rear output
|
3233622 |
— | ||
|
31
|
31
3234912 Subasm-grnd spirl bvl(411467)Incl. 37; |
3234912 |
US $552.42 |
||
|
32
|
32
3233619 Washer,thrust |
3233619 |
US $2.98 |
||
|
33
|
33
3233548 O-ring |
3233548 |
US $14.58 |
||
|
34
|
34
3233618
Ring,retaining
|
3233618 |
— | ||
|
35
|
35
3233624
Shift shaft
|
3233624 |
— | ||
|
36
|
36
3234001 Switch-gear indication,2 pstn * |
3234001 |
US $88.64 |
||
|
37
|
37
3234912 Subasm-grnd spirl bvl(411467)Incl. 31; |
3234912 |
US $552.42 |
||
|
38
|
38
3233607 Bearing,ball |
3233607 |
US $31.52 |
||
|
39
|
39
3233106 Ring, snap |
3233106 |
US $3.75 |
||
|
40
|
40
3233609 Cover,bearing |
3233609 |
US $27.56 |
||
|
41
|
41
3233608 Screw |
3233608 |
US $3.57 |
||
|
42
|
42
3233709
Gear,helical,48t
|
3233709 |
— | ||
|
43
|
43
3233605
Shift,fork,low
|
3233605 |
— | ||
|
44
|
44
3233628
Washer
|
3233628 |
— | ||
|
45
|
45
3233732 Dog,engagement,low |
3233732 |
US $173.32 |
||
|
46
|
46
3233306 Ring,retaining |
3233306 |
US $2.45 |
||
|
47
|
47
3233631 Gear,35t |
3233631 |
US $164.47 |
||
|
48
|
48
3233103 Bearing, needle |
3233103 |
US $31.52 |
||
|
49
|
49
3233602
Shift fork
|
3233602 |
— | ||
|
50
|
50
3233598
Shaft reverse
|
3233598 |
— | ||
|
51
|
51
3233012 Washer |
3233012 |
US $15.26 |
||
|
52
|
52
3233014 Bearing,needle |
3233014 |
US $48.72 |
||
|
53
|
53
3233599
Sprocket,24t
|
3233599 |
— | ||
|
54
|
54
3233029 Ring,retaining |
3233029 |
US $3.75 |
||
|
55
|
55
3234020
Engagement-dog,high/rev 12 pnt
|
3234020 |
— | ||
|
56
|
56
3233600 Gear,30t |
3233600 |
US $199.92 |
||
|
57
|
57
3233613 Spacer |
3233613 |
US $4.34 |
||
|
58
|
58
3233708
Gear,helical,36t
|
3233708 |
— | ||
|
59
|
59
3233610
Gearcase,lh
|
3233610 |
— | ||
|
60
|
60
3233309 Bracket,interlock |
3233309 |
US $25.43 |
||
|
61
|
61
3233032 Spring |
3233032 |
US $8.17 |
||
|
62
|
62
3233308 Pin,interlock |
3233308 |
US $20.69 |
||
|
63
|
63
3233357 Spacer |
3233357 |
US $3.26 |
