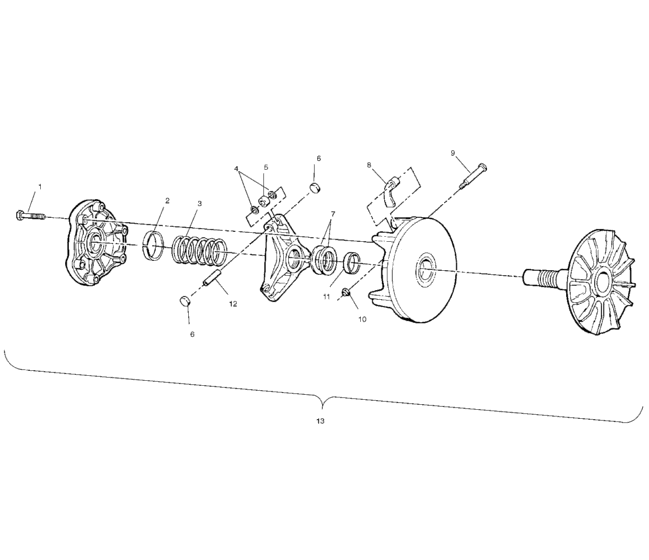

Drive clutch (A02CB32AA/AB/FC) Diagram Polaris MAGNUM 325 2X4
- Model code
- A02CB32AA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518062 Scr-1/4-20x1,25 hx/fl gr5 |
7518062 |
US $2.98 |
||
|
2
|
2
3576510 Bearing, cover,(10) |
3576510 |
US $9.85 |
||
|
3
|
3
7042202 Spring-clutch,blue/gray |
7042202 |
US $35.67 |
||
|
4
|
4
5430945 Washer(10) |
5430945 |
US $65.60 |
||
| replacement | |||||
|
4
|
4
5438247 Washer-clutch,spider roller |
5438247 |
US $26.30 |
||
|
5
|
5
1321457 Roller/bushing asm,(3) ** |
1321457 |
US $26.60 |
||
|
6
|
6
5431936
Button,clutch (10)
|
5431936 |
— | ||
| replacement | |||||
|
6
|
6
5439254 Button,clutch,rubber backed |
5439254 |
US $12.81 |
||
|
7
|
7
5210752 Spacer,,020(10).020;.020; |
5210752 |
US $0.49 |
||
|
7
|
7
5242981 Spacer,,025.025;.025; |
5242981 |
US $3.38 |
||
|
7
|
7
5210753 Spacer,,032.032;.032; |
5210753 |
US $1.98 |
||
|
7
|
7
5210754 Spacer,,050.050;.050; |
5210754 |
US $2.77 |
||
|
8
|
8
5631356 Weight-shift,20-40 |
5631356 |
US $17.24 |
||
|
9
|
9
7512266 Bolt,shoulder(10) |
7512266 |
US $3.94 |
||
|
10
|
10
7541906 Nut flexloc(10) |
7541906 |
US $52.50 |
||
|
11
|
11
3576504 Bushing,moveable,1/2 inch |
3576504 |
US $21.49 |
||
|
12
|
12
5020422 Pin-roller,(10) |
5020422 |
US $3.75 |
||
| replacement | |||||
|
12
|
12
5133079 Pin-roller,1",sbn |
5133079 |
US $9.10 |
||
|
13
|
13
1321976 Asm-drive clutch,wideIncl. All Less 4,9;Incl. All Less 4,9; |
1321976 |
US $864.66 |
||
