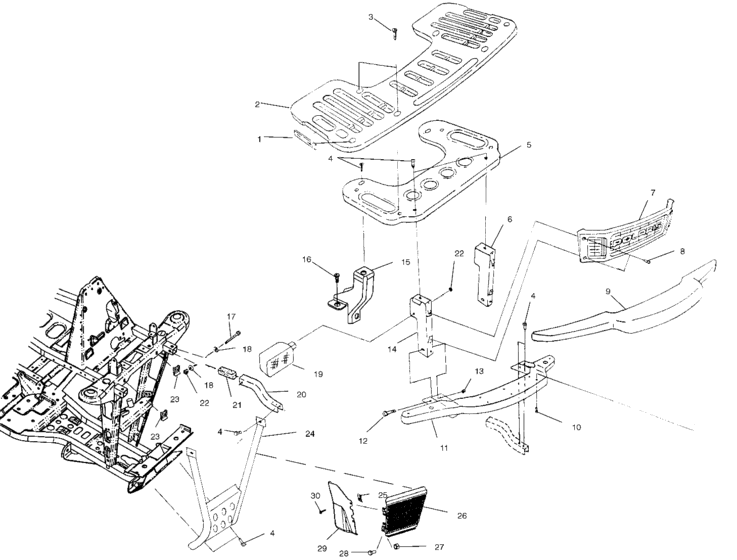

Front rack and bumper mounting (A02CB32AA/AB/FC) Diagram Polaris MAGNUM 325 2X4
- Model code
- A02CB32AA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7079926 Decal-reflect,6,75,amber |
7079926 |
US $9.75 |
||
|
2
|
2
2670180
Asm., front rack
|
2670180 |
— | ||
| replacement | |||||
|
2
|
2
2670180-070 Rack,front,blk ** |
2670180-070 |
US $254.08 |
||
|
3
|
3
7517685 Screw(10) |
7517685 |
US $65.60 |
||
|
4
|
4
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
5
|
5
1040565
Mount, front rack
|
1040565 |
— | ||
|
6
|
6
1040471-067
Weld-support,front rack,lh,blk
|
1040471-067 |
— | ||
|
7
|
7
5432299-070 Panel,grill,blk |
5432299-070 |
US $65.99 |
||
|
8
|
8
7517396 Screw |
7517396 |
US $3.94 |
||
|
9
|
9
5431774-070
Bumper,front,blk
|
5431774-070 |
— | ||
|
10
|
10
7515182 Screw |
7515182 |
US $1.89 |
||
|
11
|
11
1040461-067
Mount,bumper,blk
|
1040461-067 |
— | ||
|
12
|
12
7512130 Bolt |
7512130 |
US $2.45 |
||
|
13
|
13
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
14
|
14
1040472-067 Weld-support,front rack,rh,blk |
1040472-067 |
US $15.26 |
||
|
15
|
15
1013744-067 Weld-support rack,front,lh,blk |
1013744-067 |
US $138.64 |
||
|
15
|
15
1013746-067 Weld-support,rack,front,rh,blk |
1013746-067 |
US $114.99 |
||
|
16
|
16
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
17
|
17
7512329 Bolt |
7512329 |
US $4.59 |
||
|
18
|
18
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
19
|
19
2431011 Asm-headlight,30/30w,side mount |
2431011 |
US $128.21 |
||
|
19
|
19
2431012 Asm-headlight,30/30w,side mount |
2431012 |
US $128.21 |
||
|
19
|
19
4030061 Bulb,h/l,30/30 w, |
4030061 |
US $38.38 |
||
|
20
|
20
5241398-067
Extension,lh,frame,blk,
|
5241398-067 |
— | ||
|
20
|
20
5241399-067
Extension,rh,frame,blk,
|
5241399-067 |
— | ||
|
21
|
21
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
22
|
22
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
23
|
23
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
24
|
24
1013018-067 Brushguard,mag325,2x4,blk |
1013018-067 |
US $91.60 |
||
|
25
|
25
7670112 Nut-#10,u-type,a(,065-,087) |
7670112 |
US $4.59 |
||
|
26
|
26
5243594-067 Grill-front bumper,t,boss,blk |
5243594-067 |
US $21.49 |
||
|
27
|
27
7542101 Nut hex-lock(10) |
7542101 |
US $2.45 |
||
|
28
|
28
7512252
Screw
|
7512252 |
— | ||
|
29
|
29
5433438
Shroud-oil cooler,lh,mag
If built before 6/1/01;If built before 6/1/01; |
5433438 |
— | ||
|
29
|
29
5433439 Shroud-oil cooler,rh,magIf built before 6/1/01;If built before 6/1/01; |
5433439 |
US $56.14 |
||
|
29
|
29
5434311 Shroud-lhIf built after 6/1/01;If built after 6/1/01; |
5434311 |
US $13.20 |
||
|
29
|
29
5434312 Shroud-rhIf built after 6/1/01;If built after 6/1/01; |
5434312 |
US $12.20 |
||
|
30
|
30
7517561 Screw |
7517561 |
US $5.25 |
||
