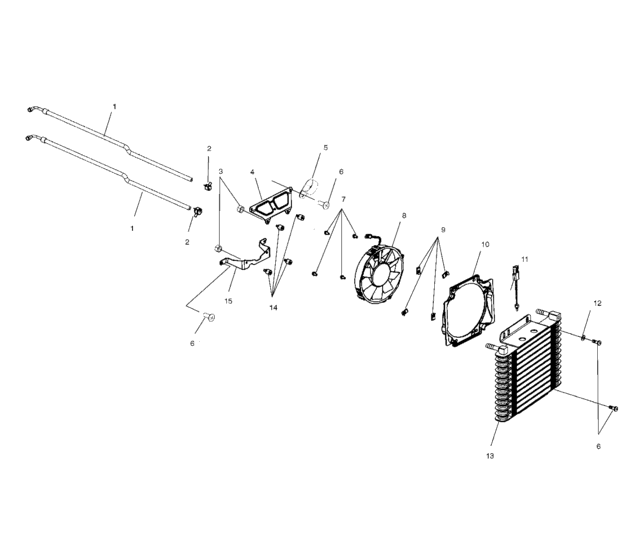

Oil cooling (A02CB32AA/AB) Diagram Polaris MAGNUM 325 2X4
- Model code
- A02CB32AA
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5412039 Hose-cooler 9/16" 90? swivel |
5412039 |
US $78.56 |
||
|
2
|
2
7080862 Clamp-hose mubea |
7080862 |
US $4.73 |
||
|
3
|
3
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
4
|
4
5245416-067 Brkt-oil cooler,top,blk |
5245416-067 |
US $99.35 |
||
|
5
|
5
7080869 Clamp-p,cushioned,1,25" i,d, |
7080869 |
US $9.85 |
||
|
6
|
6
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
7
|
7
7517659 Screw |
7517659 |
US $1.89 |
||
|
8
|
8
2410157
Fan,motor
|
2410157 |
— | ||
|
9
|
9
7670111 Clip,u |
7670111 |
US $2.70 |
||
|
10
|
10
5433353 Shroud,fan |
5433353 |
US $86.68 |
||
|
11
|
11
4010274 Thermister |
4010274 |
US $150.26 |
||
|
12
|
12
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
13
|
13
1240074
Cooler, oil
|
1240074 |
— | ||
|
14
|
14
5411548 Mount,rubber |
5411548 |
US $14.28 |
||
|
15
|
15
1013519
Brkt,asm,lower oil cooler
|
1013519 |
— |
