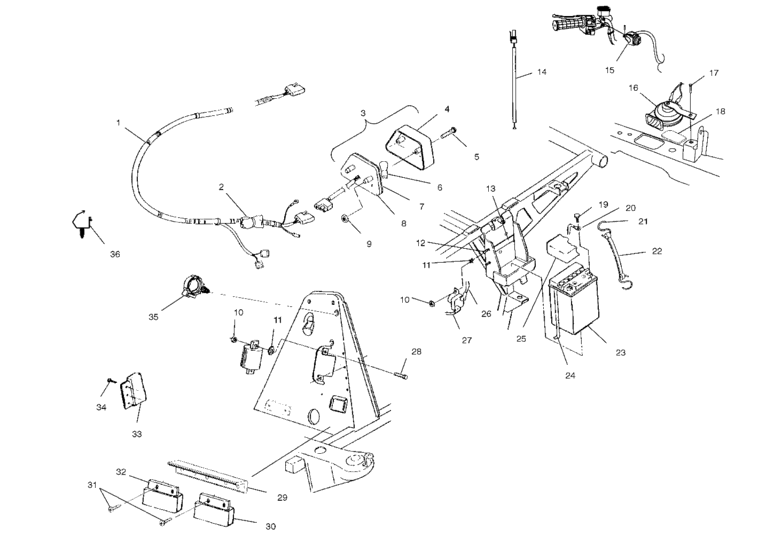

Electrical/taillight (A02CB32AA/AB/FC) Diagram Polaris MAGNUM 325 2X4
- Model code
- A02CB32AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2460949 Harness-main,magnum 325 2x4AA;AA;AB; |
2460949 |
US $379.16 |
||
|
1
|
1
2460961 Harness-main,wire mag 325,hdsFC;FC; |
2460961 |
US $359.47 |
||
|
2
|
2
2200593 Kit,ckt,brkr,20 amp |
2200593 |
US $45.69 |
||
|
3
|
3
2432034 Tail light asm,Incl. 4-9;Incl. 4-9;If built before 2/01/02; |
2432034 |
US $51.21 |
||
|
3
|
3
2410320 Asm-taillight,12v,series filIncl. 4-9;If built after 2/01/02; |
2410320 |
US $61.06 |
||
|
4
|
4
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
5
|
5
4032029 Screw |
4032029 |
US $2.98 |
||
|
6
|
6
4030043 Bulb |
4030043 |
US $4.94 |
||
|
7
|
7
4032045 Gasket |
4032045 |
US $5.11 |
||
|
8
|
8
4032064 Backing,taillight |
4032064 |
US $81.76 |
||
|
9
|
9
7670054
Nut, push-on (10)
|
7670054 |
— | ||
|
10
|
10
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
11
|
11
7571602 Washer |
7571602 |
US $2.45 |
||
|
12
|
12
7512027 Screw(10) * |
7512027 |
US $19.60 |
||
|
13
|
13
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
14
|
14
2460837 Harness-adapter,hornFC;FC; |
2460837 |
US $30.54 |
||
|
15
|
15
4010311 Switch,buttonFC;FC; |
4010311 |
US $49.25 |
||
|
16
|
16
4010310
Horn
FC;FC; |
4010310 |
— | ||
|
17
|
17
7517386 Screw(10)FC;FC; |
7517386 |
US $19.60 |
||
|
18
|
18
5810317
Pad
FC;FC; |
5810317 |
— | ||
| replacement | |||||
|
18
|
18
8360026
Pad,bulk fuel
FC;FC; |
8360026 |
— | ||
|
19
|
19
2200361 Kit-battery bolt (short) |
2200361 |
US $1.77 |
||
|
20
|
20
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
21
|
21
7010032 Hook-battery strap(10) |
7010032 |
US $26.30 |
||
|
22
|
22
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
23
|
23
4140006 Battery |
4140006 |
US $275.60 |
||
|
24
|
24
5432077 Tube,vent |
5432077 |
US $6.11 |
||
|
25
|
25
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
26
|
26
4010094 Cable,batt/solenoid,red |
4010094 |
US $30.54 |
||
|
27
|
27
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
28
|
28
7512007 Bolt |
7512007 |
US $2.45 |
||
|
29
|
29
5132214 Sink,heat |
5132214 |
US $10.15 |
||
|
30
|
30
4010590
Switch-thermister,lr-62
|
4010590 |
— | ||
|
31
|
31
7512018 Screw(10) |
7512018 |
US $0.79 |
||
|
32
|
32
4060191
Rectifier/regulator,lr-35
|
4060191 |
— | ||
|
33
|
33
4010137
Limiter,rpm,350 hz,lr44-3
AA;AA;AB; |
4010137 |
— | ||
|
34
|
34
7512017 Screw |
7512017 |
US $2.45 |
||
|
35
|
35
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
36
|
36
7670109 Clip-routing |
7670109 |
US $3.75 |
||
