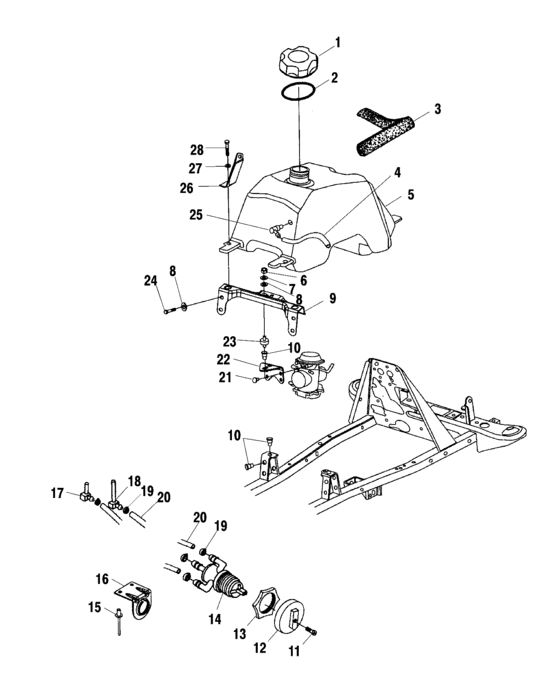

Fuel tank and carburetor mounting (A02CD32AA/AB/AC/FB) Diagram Polaris MAGNUM 325 4X4 HDS
- Model code
- A02CD32FB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5433687 Cap,gas tankIncludes Gasket; |
5433687 |
US $24.08 |
||
|
2
|
2
5812123 Gasket |
5812123 |
US $10.03 |
||
|
3
|
3
5811942
Foam,seal,25"
|
5811942 |
— | ||
|
4
|
4
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
5
|
5
2520183
Asm., fuel tank
Incl. 18,19,26; |
2520183 |
— | ||
|
6
|
6
7542105 Nut hex |
7542105 |
US $3.26 |
||
|
7
|
7
7552605 Washer |
7552605 |
US $3.92 |
||
|
8
|
8
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
9
|
9
5245671-067
Brkt,carburetor support,blk
|
5245671-067 |
— | ||
|
10
|
10
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
11
|
11
7517505 Screw(10) |
7517505 |
US $1.49 |
||
|
12
|
12
5432559 Knob,fuel valve |
5432559 |
US $9.15 |
||
|
13
|
13
5432733 Nut,fuel valve |
5432733 |
US $2.98 |
||
|
14
|
14
7052161 Valve,3-way |
7052161 |
US $31.52 |
||
|
15
|
15
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
16
|
16
5240577-067
Brkt,fuelvalve,blk
|
5240577-067 |
— | ||
|
17
|
17
7052146 Fitting,fuel out,main,y |
7052146 |
US $19.51 |
||
|
18
|
18
7052149 Fitting,fuel out,res,,z |
7052149 |
US $14.09 |
||
|
19
|
19
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
20
|
20
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
21
|
21
3084205 Asm,,screw & washer(10) |
3084205 |
US $5.04 |
||
|
22
|
22
5245674-067 Mount,carburetor,blk |
5245674-067 |
US $4.94 |
||
|
23
|
23
3110050 Mount,carburetor |
3110050 |
US $15.73 |
||
|
24
|
24
7512276 Bolt |
7512276 |
US $2.98 |
||
|
25
|
25
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
26
|
26
5222154-067
Bracket, fuel cover mount, rear, lh
|
5222154-067 |
— | ||
|
26
|
26
5222155-067
Bracket, fuel cover mount, rear, rh
|
5222155-067 |
— | ||
|
27
|
27
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
28
|
28
7512277 Bolt |
7512277 |
US $2.98 |
