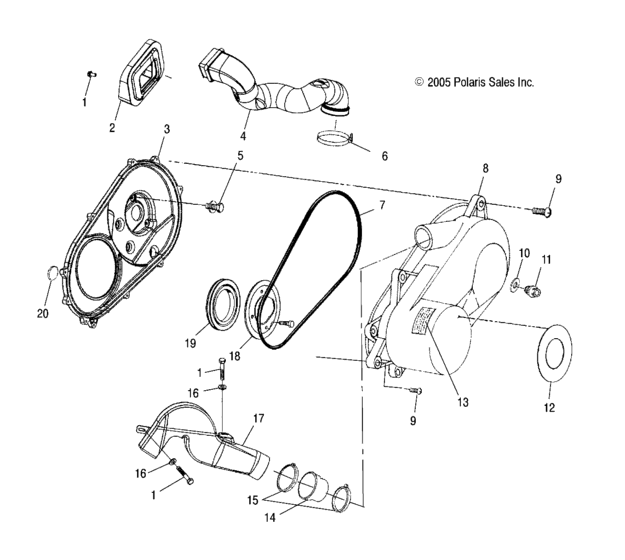

Clutch cover (A06CD32AA/AB/AC) Diagram Polaris MAGNUM 330 4X4
- Model code
- A06CD32AA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
2
|
2
2632513 Asm-foam,clutch air inlet |
2632513 |
US $33.50 |
||
|
3
|
3
2201956 Kit-inner clutch cvr,4234,svc |
2201956 |
US $142.80 |
||
|
4
|
4
5433363
Duct,inlet
|
5433363 |
— | ||
|
5
|
5
7517599 Asm,,bolt /washer,88 |
7517599 |
US $3.94 |
||
|
6
|
6
7080909 Clamp,narrow band(1,77/2,75) |
7080909 |
US $6.69 |
||
|
7
|
7
5521578
Seal, cover, clutch, outer
|
5521578 |
— | ||
|
8
|
8
2633262
Asm-cover,clutch,outer,hv
|
2633262 |
— | ||
|
9
|
9
7512094 Screw(10) * |
7512094 |
US $39.40 |
||
|
10
|
10
5410542
O-ring
|
5410542 |
— | ||
| replacement | |||||
|
10
|
10
5411432 O ring (10) |
5411432 |
US $39.70 |
||
|
11
|
11
5434264 Plug-drain |
5434264 |
US $3.15 |
||
|
12
|
12
7172746 Decal-automatic transmission |
7172746 |
US $4.34 |
||
|
13
|
13
7172563 Decal, warning, clutch cover |
7172563 |
US $3.36 |
||
|
14
|
14
5412636 Boot-duct,hi-flow |
5412636 |
US $30.10 |
||
|
15
|
15
7081279 Clamp-band,narrow 70-90mm |
7081279 |
US $3.94 |
||
|
16
|
16
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
17
|
17
5434213 Duct-air outlet |
5434213 |
US $89.37 |
||
|
18
|
18
5242046 Brkt-clutch seal |
5242046 |
US $24.43 |
||
|
19
|
19
5410575
Seal, cover case
|
5410575 |
— | ||
|
20
|
20
5411795 Stopper-inner clutch cover |
5411795 |
US $8.17 |
||
