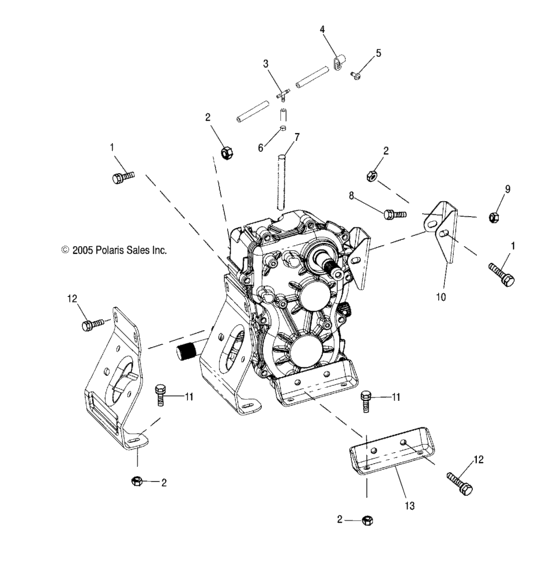

Transmission mounting (A06CD32AA/AB/AC) Diagram Polaris MAGNUM 330 4X4
- Model code
- A06CD32AA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518415 Bolt-3/8-24x23/4,hex flange,65 |
7518415 |
US $2.70 |
||
|
2
|
2
7547108 Nut |
7547108 |
US $2.98 |
||
|
3
|
3
7052075 Fitting, tee |
7052075 |
US $7.68 |
||
|
4
|
4
7080693 Clamp,hose,nylon (10) |
7080693 |
US $3.75 |
||
|
5
|
5
7512024 Screw |
7512024 |
US $2.45 |
||
|
6
|
6
7080307 Clamp,hose(10) |
7080307 |
US $0.79 |
||
|
7
|
7
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
8
|
8
7512377 Bolt,carriage |
7512377 |
US $5.25 |
||
|
9
|
9
7542343 Nut,flange |
7542343 |
US $6.56 |
||
|
10
|
10
5247343
Mount-transmission rear,pltd
|
5247343 |
— | ||
|
11
|
11
7517289 Screw |
7517289 |
US $3.94 |
||
|
12
|
12
7517632 Screw |
7517632 |
US $4.24 |
||
|
13
|
13
5242820-067 Mount,transmission,blk |
5242820-067 |
US $9.15 |
