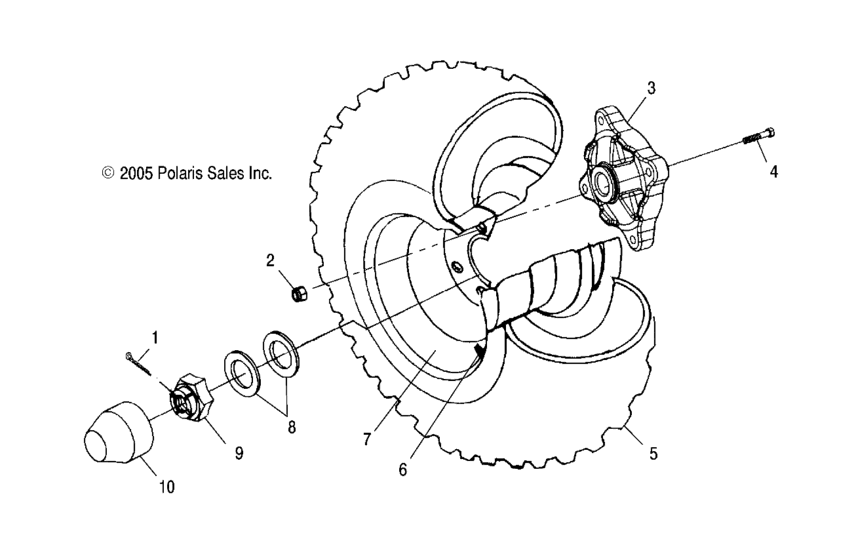

Wheel drive, rear (A06CD32AA/AB/AC) Diagram Polaris MAGNUM 330 4X4
- Model code
- A06CD32AA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7661404 Pin, cotter |
7661404 |
US $5.25 |
||
|
2
|
2
7547237 Nut-flange,two piece,3/8-24 |
7547237 |
US $39.40 |
||
|
3
|
3
5131649
Hub,r,wheel,mach
RH Side; |
5131649 |
— | ||
|
3
|
3
5134211 Hub-wheel,22t,machLH Side;See Swing Arm, Rear/Gearcase Mounting, Pg. C9, Ref. 2; |
5134211 |
US $178.73 |
||
|
4
|
4
7515513 Stud(10) * |
7515513 |
US $19.60 |
||
|
5
|
5
5411936 Tire,24x11-12,titan__c40 |
5411936 |
US $179.22 |
||
|
6
|
6
1525017 Valve, rimAA; |
1525017 |
US $6.56 |
||
|
7
|
7
1520457-486 Weld-rim,rear,12x8,slvAB;AC; |
1520457-486 |
US $152.65 |
||
|
7
|
7
1520457-067 Rim,rear,12x8,black |
1520457-067 |
US $152.65 |
||
|
8
|
8
7555796 Washer, cone |
7555796 |
US $9.10 |
||
|
9
|
9
7543005 Nut, castle |
7543005 |
US $9.84 |
||
|
10
|
10
5411164
Cover, dust, hub
|
5411164 |
— |
