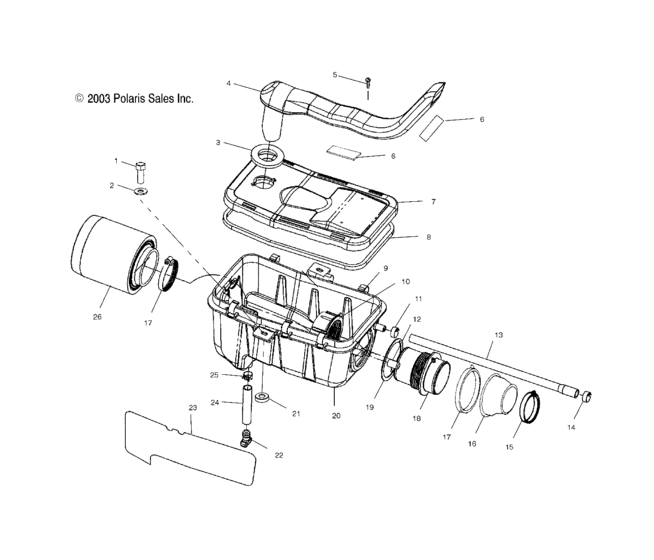

Air box (A04CD32AA/AB/AC/FB) Diagram Polaris MAGNUM 330 4X4
- Model code
- A04CD32AA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515180
Screw
If built before 10/13/03; |
7515180 |
— | ||
|
1
|
1
7518306 Scr-1/4-20x1,50-hx/w-tapr-gp-yIf built after 10/13/03; |
7518306 |
US $1.49 |
||
|
2
|
2
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
3
|
3
5812023 Seal |
5812023 |
US $8.17 |
||
|
4
|
4
5433920
Duct-inlet
|
5433920 |
— | ||
|
5
|
5
7517317 Screw(10) |
7517317 |
US $0.79 |
||
|
6
|
6
5810317
Pad
|
5810317 |
— | ||
| replacement | |||||
|
6
|
6
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
7
|
7
5433769 Cover,airbox |
5433769 |
US $42.54 |
||
|
8
|
8
5811482
Seal, cover
|
5811482 |
— | ||
|
9
|
9
5242044 Clip |
5242044 |
US $7.68 |
||
|
10
|
10
5432601 Collar,carburetor,inlet |
5432601 |
US $9.85 |
||
|
11
|
11
7080699
Clamp,hose
|
7080699 |
— | ||
|
12
|
12
5412101 Cap-rubber,3/8 id |
5412101 |
US $3.26 |
||
|
13
|
13
5411866 Hose,brthr,,47-,38x13,5" |
5411866 |
US $14.28 |
||
|
14
|
14
7080694 Clamp,hose,spring |
7080694 |
US $3.94 |
||
|
15
|
15
7080511 Clamp, narrow band |
7080511 |
US $1.75 |
||
|
16
|
16
5411588 Boot-carburetor |
5411588 |
US $22.66 |
||
|
17
|
17
7080413 Clamp,band,narrow (10) |
7080413 |
US $3.75 |
||
|
18
|
18
5433180 Duct-carburetor inlet |
5433180 |
US $24.43 |
||
|
19
|
19
5830128 Gasket,carburetor inlet duct |
5830128 |
US $3.26 |
||
|
20
|
20
5433768
Box, air intake, 4 stroke
|
5433768 |
— | ||
|
21
|
21
7556091 Spacer |
7556091 |
US $2.45 |
||
|
22
|
22
5435299 Plug-trap |
5435299 |
US $4.34 |
||
|
23
|
23
5812111
Foil-rh
|
5812111 |
— | ||
|
24
|
24
8450059-100
Line, fuel
|
8450059-100 |
— | ||
|
25
|
25
7080650 Clamp,hose |
7080650 |
US $3.26 |
||
|
26
|
26
1253372 Asm-filter,air,4,0" long |
1253372 |
US $29.54 |
||
