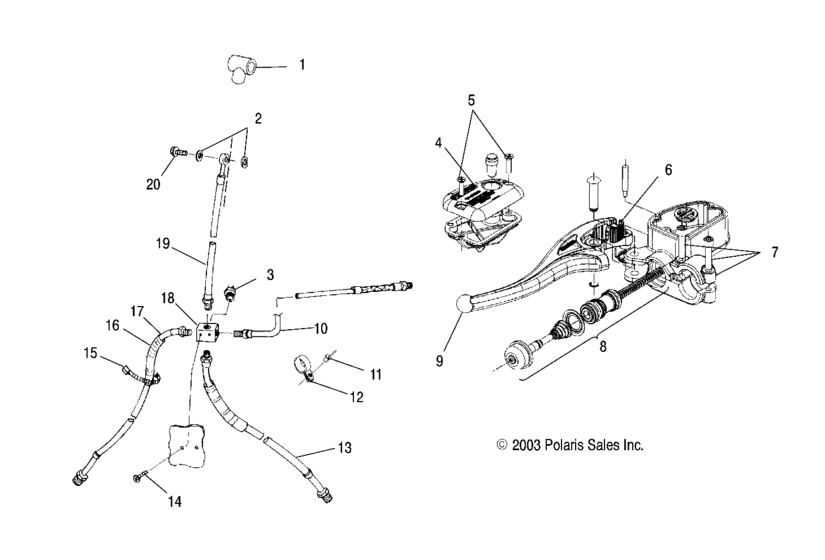

Controls (MASTER CYLINDER/BRAKE LINE) Diagram Polaris MAGNUM 330 4X4
- Model code
- A04CD32AA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411297 Boot,brakeline,rubber |
5411297 |
US $2.57 |
||
|
2
|
2
5410988
Seal
|
5410988 |
— | ||
|
3
|
3
4110164 Switch,stoplight |
4110164 |
US $34.49 |
||
|
4
|
4
2201834
Kit, master cylinder cap
Incl. Cap, Screws, Sight, Gasket; Use w/Master Cylinder 2010196; |
2201834 |
— | ||
|
4
|
4
2202725 Kit-m/c capIncl. Cap, Sight, Gasket; Use w/Master Cylinder 2010238; |
2202725 |
US $49.25 |
||
|
5
|
5
7517899 Screw,8-32x5/8,torx flhd ms-m(1 |
7517899 |
US $0.79 |
||
|
6
|
6
2201836 Kit,master cylinder park brakeIncl. Lever, Spring; |
2201836 |
US $40.58 |
||
|
7
|
7
2201833 Kit,master cylinder clampIncl. Clamp, Screws; |
2201833 |
US $45.61 |
||
|
8
|
8
2202410 Kit-piston,3/4" mstr cylIncl. Piston, Seals, Boot, Spring; |
2202410 |
US $113.73 |
||
|
9
|
9
2201835 Kit,master cylinder leverIncl. Pin, Lever, Clip; |
2201835 |
US $56.14 |
||
|
10
|
10
1910565
Line-brake,jb to rear,ss,srs
|
1910565 |
— | ||
|
11
|
11
7621462 Rivet(50) |
7621462 |
US $1.89 |
||
|
12
|
12
7080539 Clamp,nylon,cable |
7080539 |
US $2.45 |
||
|
13
|
13
1910474 Line-brake,front lh,ss |
1910474 |
US $93.52 |
||
|
14
|
14
7512024 Screw |
7512024 |
US $2.45 |
||
|
15
|
15
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
16
|
16
8360031-34
Conduit
|
8360031-34 |
— | ||
|
17
|
17
1910475 Line-brake,front rh,ss |
1910475 |
US $93.52 |
||
|
18
|
18
7052292 Fitting,cross |
7052292 |
US $34.27 |
||
|
19
|
19
1910470 Line-brake,pod,ss,22,56 |
1910470 |
US $93.52 |
||
|
20
|
20
1910499 Bolt-banjo,10mmx1,00 |
1910499 |
US $7.68 |
