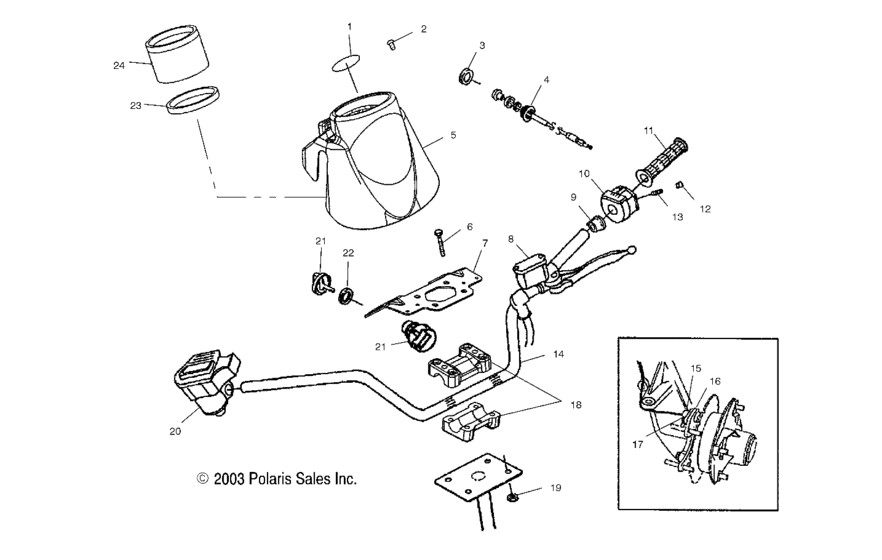

Handlebar (A04CD32AA/AB/AC/FB) Diagram Polaris MAGNUM 330 4X4
- Model code
- A04CD32AA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7078465 Logo-polaris starAA;AB;AC; |
7078465 |
US $14.04 |
||
|
2
|
2
7518176 Scr-10-24x1/2 ph/tx/trird/semb |
7518176 |
US $3.26 |
||
|
3
|
3
7080922 Nut,choke,m24x1,5 thd,m29 hex |
7080922 |
US $4.73 |
||
|
4
|
4
7081008 Cable-choke,friction,40"If built before 8/11/03; |
7081008 |
US $70.89 |
||
|
4
|
4
7081176
Cable, choke, friction
If built after 8/11/03; |
7081176 |
— | ||
|
5
|
5
5435256-070
Panel-instr,speedo,blk
|
5435256-070 |
— | ||
|
6
|
6
7515189 Screw(10) * |
7515189 |
US $1.89 |
||
|
7
|
7
5246406-067
Bracket, instrument panel
If built before 12/21/03; |
5246406-067 |
— | ||
|
7
|
7
5248182 Brkt-instrument panelIf built after 12/21/03; |
5248182 |
US $5.11 |
||
|
9
|
9
5433903 Spacer-switch,lh,99 |
5433903 |
US $10.61 |
||
|
10
|
10
4010592
Switch, handlebar, hi/lo/off
|
4010592 |
— | ||
|
11
|
11
5433834-070 Grip-hndlbar,7/8 id,black |
5433834-070 |
US $16.24 |
||
|
12
|
12
5432952 Plug,hole |
5432952 |
US $3.15 |
||
|
13
|
13
7517625 Screw,set |
7517625 |
US $2.98 |
||
|
14
|
14
5334127-067 Tube-handlebar,blkAA;AB;AC; |
5334127-067 |
US $68.93 |
||
|
14
|
14
5246422-067
Tube-handlebar,wide,blk
FB; |
5246422-067 |
— | ||
|
15
|
15
5132382 Cap-hall sensorAA; |
5132382 |
US $16.24 |
||
|
16
|
16
4010298 Sensor,hall effectAA; |
4010298 |
US $91.60 |
||
|
17
|
17
7517658 ScrewAA; |
7517658 |
US $3.75 |
||
|
18
|
18
5631146 Block-handlebar,peggedIf built before 9/29/03; |
5631146 |
US $13.20 |
||
|
18
|
18
5631147
Block-handlebar
If built before 9/29/03; |
5631147 |
— | ||
|
18
|
18
5631972 Block-handlebar, peg,89 idIf built after 9/29/03; |
5631972 |
US $19.30 |
||
|
18
|
18
5631973 Block-handlebar, ,89 idIf built after 9/29/03; |
5631973 |
US $19.30 |
||
|
19
|
19
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
21
|
21
4011002
Switch, key
|
4011002 |
— | ||
|
21
|
21
5431964
Cover, key
|
5431964 |
— | ||
| replacement | |||||
|
21
|
21
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
21
|
21
4010278 Key blank (20/21/67/68) seriesNOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.; |
4010278 |
US $12.81 |
||
|
21
|
21
4010321 Key blank (22/23/27/28) seriesNOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.; |
4010321 |
US $14.77 |
||
|
22
|
22
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
23
|
23
5412138
Mount-rubber,instr, cluster
|
5412138 |
— | ||
|
24
|
24
3280453
Cluster,speedo-atv
AA;AB;AC; |
3280453 |
— | ||
|
24
|
24
3280449 Cluster-instrument,24",kmhFB; |
3280449 |
US $454.46 |
||
|
24
|
24
4010818 Switch-speedo mode,hds,hdlbarFB; |
4010818 |
US $27.58 |
||
