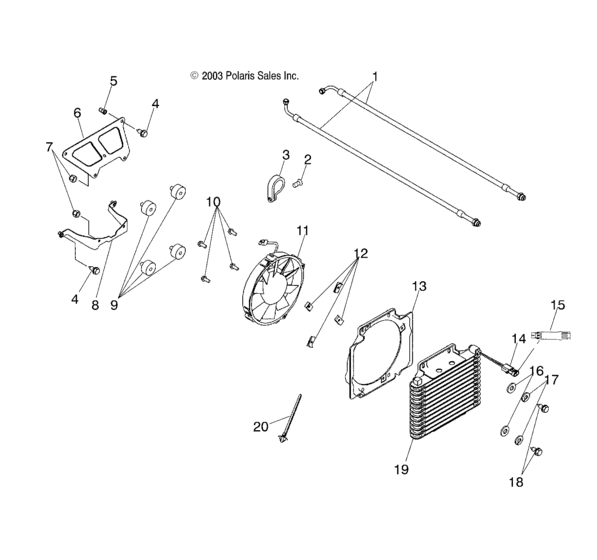

Oil cooling (A04CD32AA/AB/AC/FB) Diagram Polaris MAGNUM 330 4X4
- Model code
- A04CD32AA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5412355
Hose
|
5412355 |
— | ||
|
2
|
2
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
3
|
3
7080851
Clamp, hose
|
7080851 |
— | ||
| replacement | |||||
|
3
|
3
7080908 Clamp,hose 1,375,vnl ecoated |
7080908 |
US $6.69 |
||
|
4
|
4
7515133 Screw |
7515133 |
US $5.25 |
||
|
5
|
5
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
6
|
6
5245416-067 Brkt-oil cooler,top,blk |
5245416-067 |
US $99.35 |
||
|
7
|
7
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
8
|
8
1013519
Brkt,asm,lower oil cooler
|
1013519 |
— | ||
|
8
|
8
7542130 Rivnut |
7542130 |
US $7.68 |
||
|
9
|
9
5411548 Mount,rubberIf built before 2/21/04; |
5411548 |
US $14.28 |
||
|
9
|
9
7555932 Washer,nylonIf built after 2/21/04; |
7555932 |
US $2.98 |
||
|
10
|
10
7517659 Screw |
7517659 |
US $1.89 |
||
|
11
|
11
2410157
Fan,motor
|
2410157 |
— | ||
|
12
|
12
7670111 Clip,u |
7670111 |
US $2.70 |
||
|
13
|
13
5433353 Shroud,fan |
5433353 |
US $86.68 |
||
|
14
|
14
4010274 ThermisterIf built before 1/05/04; |
4010274 |
US $150.26 |
||
|
14
|
14
4010934
Thermister
If built after 1/05/04; |
4010934 |
— | ||
|
15
|
15
2410380
Jumper-thermistor offset
|
2410380 |
— | ||
|
16
|
16
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
17
|
17
7552801 Washer, spring lock(10)If built before 2/21/04; |
7552801 |
US $2.45 |
||
|
18
|
18
7512240 BoltIf built before 2/21/04; |
7512240 |
US $2.45 |
||
|
18
|
18
7512163 BoltIf built after 2/21/04; |
7512163 |
US $2.45 |
||
|
19
|
19
1240191
Cooler-oil
If built after 1/05/04; |
1240191 |
— | ||
|
19
|
19
1240155
Cooler, oil
If built before 1/05/04; |
1240155 |
— | ||
|
20
|
20
7080999 Tie-cable,press mnt,blk |
7080999 |
US $7.68 |
||
