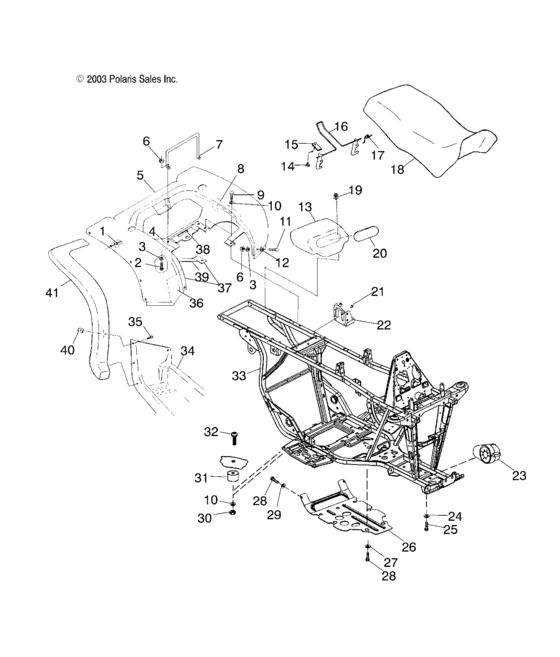

Rear cab and seat (A04CD32AA/AB/AC/FB) Diagram Polaris MAGNUM 330 4X4
- Model code
- A04CD32AA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7661645 Rivet(50) *AA;AB;AC; |
7661645 |
US $1.89 |
||
|
2
|
2
7511930 Screw(10) |
7511930 |
US $0.79 |
||
|
3
|
3
7555792 Washer |
7555792 |
US $2.45 |
||
|
4
|
4
5811107 Foil,rear |
5811107 |
US $5.11 |
||
|
5
|
5
5432117-382
Cab-rear,slv vapor met **
AA;FB; |
5432117-382 |
— | ||
|
5
|
5
5435164-455 Cab-rr,n,b,u,AB; |
5435164-455 |
US $730.70 |
||
|
5
|
5
5432117-400
Cab-rear,camo green met **
AC; |
5432117-400 |
— | ||
|
6
|
6
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
7
|
7
5224592 Retainer,seat latch |
5224592 |
US $47.25 |
||
|
8
|
8
5811308 Foil,tape,3 x 12 |
5811308 |
US $12.20 |
||
|
9
|
9
7512242 Screw(10) |
7512242 |
US $0.79 |
||
|
10
|
10
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
11
|
11
7512085
Screw
|
7512085 |
— | ||
| replacement | |||||
|
11
|
11
7511989
Screw
|
7511989 |
— | ||
|
12
|
12
7556034 Washer |
7556034 |
US $3.75 |
||
|
13
|
13
5431786 Toolbox |
5431786 |
US $65.99 |
||
|
14
|
14
7621403 Blind rivet(50) |
7621403 |
US $0.79 |
||
|
15
|
15
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
16
|
16
1040387 Latch,seat |
1040387 |
US $37.63 |
||
|
17
|
17
7041370 Spring, latch |
7041370 |
US $8.17 |
||
|
18
|
18
2683222-070 Asm-seat,blk |
2683222-070 |
US $438.25 |
||
|
18
|
18
2682958-070
Covering, seat, black
|
2682958-070 |
— | ||
|
19
|
19
7517375
Screw
|
7517375 |
— | ||
| replacement | |||||
|
19
|
19
7555748 Washer |
7555748 |
US $2.45 |
||
|
20
|
20
5431787 Cover, toolbox |
5431787 |
US $17.24 |
||
|
21
|
21
7515199 Screw(10) * |
7515199 |
US $1.89 |
||
|
22
|
22
1040447-067 Weld-battery box,blk |
1040447-067 |
US $31.52 |
||
|
24
|
24
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
25
|
25
7512492 Screw(10) |
7512492 |
US $39.40 |
||
|
26
|
26
5435005
Guard-rock **
|
5435005 |
— | ||
|
27
|
27
7556065 Washer |
7556065 |
US $6.69 |
||
|
28
|
28
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
29
|
29
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
30
|
30
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
31
|
31
5412156 Grommet |
5412156 |
US $3.26 |
||
|
32
|
32
7517987 Scr-1/4-20x1,68 tr/tx |
7517987 |
US $8.65 |
||
|
33
|
33
1014293-067
Weld-main frame,srs,blk
|
1014293-067 |
— | ||
|
34
|
34
5432221-070 Footwell,lh,blk,nylon*AA;AB;AC; |
5432221-070 |
US $244.23 |
||
|
34
|
34
5433219-070 Footwell-nylon,rh,blk*AA;AB;AC; |
5433219-070 |
US $244.23 |
||
|
34
|
34
5434404-070 Guard-mudflap,footrest,lh,blkFB; |
5434404-070 |
US $40.58 |
||
|
34
|
34
5434405-070
Guard-mudflap footrest,rh,blk
FB; |
5434405-070 |
— | ||
|
35
|
35
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
36
|
36
5811111 Foil |
5811111 |
US $28.58 |
||
|
37
|
37
5811322 Foil-tape,8 x 1,5 |
5811322 |
US $2.45 |
||
|
38
|
38
7170007
Decal,carburetor/filter
|
7170007 |
— | ||
|
39
|
39
5811087
Foil,(6x1)
|
5811087 |
— | ||
|
40
|
40
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
41
|
41
5431796-070
Guard-mud,rear,lh,blk **
AA;AB;AC; |
5431796-070 |
— | ||
|
41
|
41
5431797-070 Guard-mud,rear,rh,blk **AA;AB;AC; |
5431797-070 |
US $72.56 |
||
|
41
|
41
5434408-070 Guard-mudflap,rear,lh,blkFB; |
5434408-070 |
US $106.24 |
||
|
41
|
41
5434409-070
Guard-mudflap,rear,rh,blk
FB; |
5434409-070 |
— | ||
