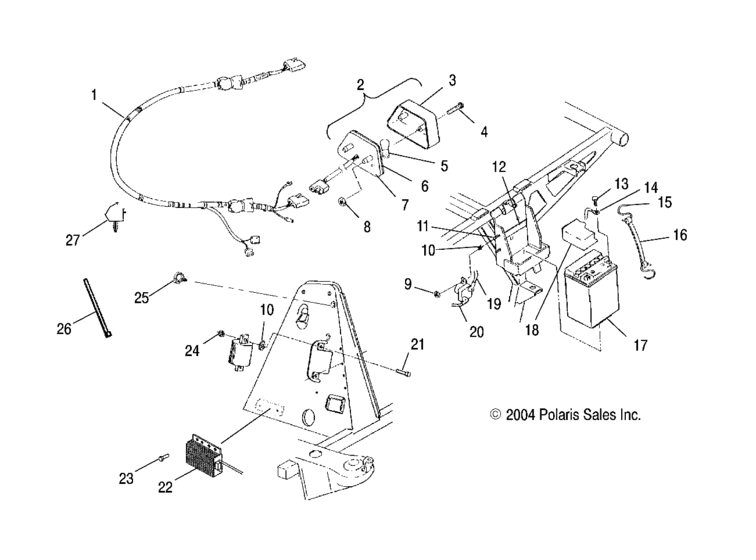

Electrical/taillight (A05CD32AA/AB/AC) Diagram Polaris MAGNUM 330 4X4
- Model code
- A05CD32AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2410500
Harness-main
|
2410500 |
— | ||
|
1
|
1
4010924
Module-resistor
|
4010924 |
— | ||
|
1
|
1
2202147 Kit-fusible link |
2202147 |
US $41.35 |
||
|
2
|
2
2410320 Asm-taillight,12v,series filIncl. 3-8; |
2410320 |
US $61.06 |
||
|
3
|
3
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
4
|
4
4032029 Screw |
4032029 |
US $2.98 |
||
|
5
|
5
4030043 Bulb |
4030043 |
US $4.94 |
||
|
6
|
6
4032045 Gasket |
4032045 |
US $5.11 |
||
|
8
|
8
7670054
Nut, push-on (10)
|
7670054 |
— | ||
|
9
|
9
7518287 Nut-#10-24 nylok insert |
7518287 |
US $1.49 |
||
|
10
|
10
7571602 Washer |
7571602 |
US $2.45 |
||
|
11
|
11
7512027 Screw(10) * |
7512027 |
US $19.60 |
||
|
12
|
12
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
13
|
13
2202213 Kit-battery bolt (long) |
2202213 |
US $2.28 |
||
|
14
|
14
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
15
|
15
7010032 Hook-battery strap(10) |
7010032 |
US $26.30 |
||
|
16
|
16
5412499 Strap-battery hold down-c |
5412499 |
US $2.17 |
||
|
17
|
17
4010774 Battery-14ah,sealed,charged |
4010774 |
US $135.40 |
||
|
18
|
18
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
19
|
19
4010094 Cable,batt/solenoid,red |
4010094 |
US $30.54 |
||
|
20
|
20
4010093 Cable,sol/starter |
4010093 |
US $36.45 |
||
|
21
|
21
7512007 Bolt |
7512007 |
US $2.45 |
||
|
22
|
22
4011088
Module, controller
|
4011088 |
— | ||
|
23
|
23
7512024 ScrewAA; |
7512024 |
US $2.45 |
||
|
24
|
24
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
25
|
25
4020139 Clip,rosebud |
4020139 |
US $3.26 |
||
|
26
|
26
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
27
|
27
7670109 Clip-routing |
7670109 |
US $3.75 |
