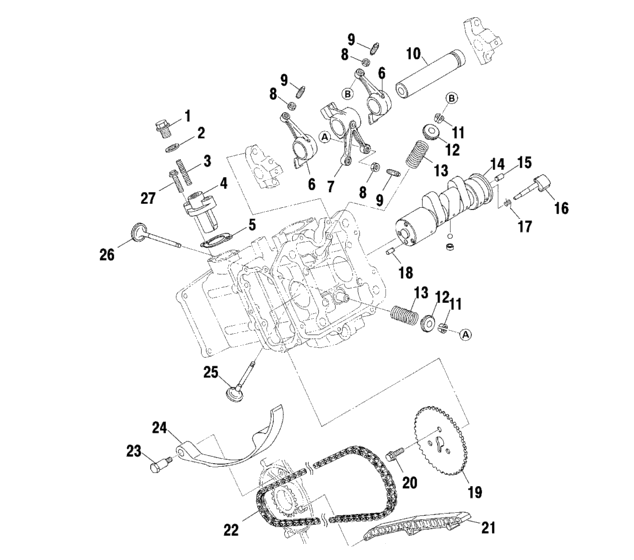

Intake and exhaust (A02CB50FC) Diagram Polaris MAGNUM 500 2X4 HDS
- Model code
- A02CB50FC
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3084845
Plug
|
3084845 |
— | ||
|
2
|
2
3084920
Gasket, plug
|
3084920 |
— | ||
|
3
|
3
3086839
Spring, tensioner
|
3086839 |
— | ||
|
4
|
4
3086813
Tensioner,asm
Incl. 1-3; |
3086813 |
— | ||
|
5
|
5
3084922
Gasket,tensioner
|
3084922 |
— | ||
|
6
|
6
3084910 Rocker arm asm,intake *Incl. 8,9; |
3084910 |
US $111.30 |
||
|
7
|
7
3084913 Rocker arm asm,exhaust *Incl. 8,9; |
3084913 |
US $170.94 |
||
|
8
|
8
3084912 Nut(10) |
3084912 |
US $1.49 |
||
|
9
|
9
3084911 Screw, adjusting |
3084911 |
US $7.68 |
||
|
10
|
10
3084909 Shaft,rocker |
3084909 |
US $43.33 |
||
|
11
|
11
3084908 Collet,valve |
3084908 |
US $3.94 |
||
|
12
|
12
3086893
Retainer, spring
|
3086893 |
— | ||
|
13
|
13
3084906
Spring, valve
|
3084906 |
— | ||
| replacement | |||||
|
13
|
13
3086892 Spring,valve |
3086892 |
US $13.20 |
||
|
14
|
14
3086212 Asm,, camshaft *Incl. 15-18; |
3086212 |
US $410.83 |
||
|
15
|
15
3086838 Pin,dowel |
3086838 |
US $4.73 |
||
|
16
|
16
3085348 Lever, release |
3085348 |
US $107.36 |
||
|
17
|
17
3085076
Spring,return
|
3085076 |
— | ||
|
18
|
18
3084899 Pin,dowel |
3084899 |
US $5.43 |
||
|
19
|
19
3084914 Sprocket 2 |
3084914 |
US $76.81 |
||
|
20
|
20
3081657 Bolt&washer asm, |
3081657 |
US $2.98 |
||
|
21
|
21
3084916 Guide,chain |
3084916 |
US $61.06 |
||
|
22
|
22
3084915 Chain, timing * |
3084915 |
US $101.45 |
||
|
23
|
23
3084924 Asm,,bolt,pivot,lever |
3084924 |
US $30.03 |
||
|
24
|
24
3084917 Lever |
3084917 |
US $91.60 |
||
|
25
|
25
3085349 Valve,intake * |
3085349 |
US $61.06 |
||
|
26
|
26
3085412 Valve, exhaust * |
3085412 |
US $86.68 |
||
|
27
|
27
3084874 Bolt, flange |
3084874 |
US $1.77 |
||
