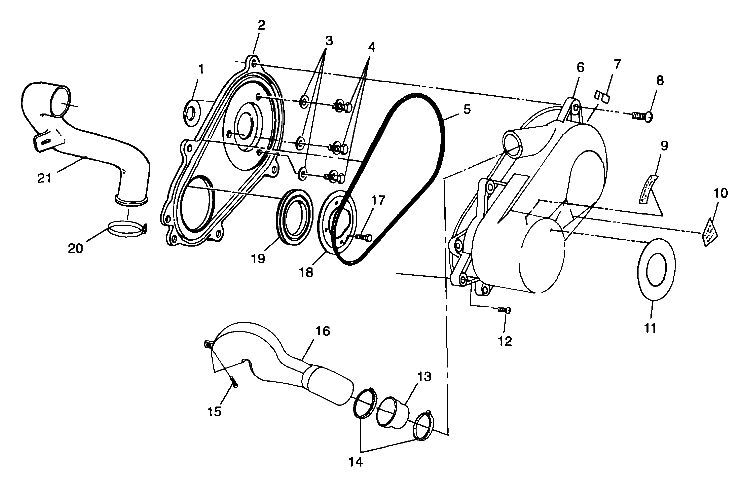

Clutch cover (A99CD50AA) Diagram Polaris MAGNUM 500
- Model code
- A99CD50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5410489 Seal,cover case |
5410489 |
US $10.85 |
||
|
2
|
2
2201421
Cover,clutch,inner,svc
Incl. 5,8,12,19; |
2201421 |
— | ||
|
3
|
3
7555748 Washer10; |
7555748 |
US $2.45 |
||
|
4
|
4
7517601 Bolt /washer,1-1/8 |
7517601 |
US $14.09 |
||
|
5
|
5
5521301 Seal,outer,clutch cover |
5521301 |
US $23.64 |
||
|
6
|
6
5432849
Cover,clutch,outer,hv
|
5432849 |
— | ||
| replacement | |||||
|
6
|
6
5433540 Cover-clutch,outer,rtp |
5433540 |
US $182.19 |
||
|
7
|
7
7670051 Clip,clutch cover(10)10; |
7670051 |
US $1.89 |
||
|
8
|
8
7512093 Screw(10)10; |
7512093 |
US $1.49 |
||
|
9
|
9
7074946
Decal,clutch cover
|
7074946 |
— | ||
| replacement | |||||
|
9
|
9
7078689
Decal, warning, clutch cover
|
7078689 |
— | ||
|
10
|
10
7077377
Decal,eng/clutch mod.
|
7077377 |
— | ||
| replacement | |||||
|
10
|
10
7078689
Decal, warning, clutch cover
|
7078689 |
— | ||
|
11
|
11
7077666
Decal"auto,/ebs",clutch
|
7077666 |
— | ||
|
12
|
12
7512094 Screw(10) *10; |
7512094 |
US $39.40 |
||
|
13
|
13
5411489 Boot,duct,hi-flow |
5411489 |
US $10.85 |
||
|
14
|
14
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
15
|
15
7517386 Screw(10)10; |
7517386 |
US $19.60 |
||
|
16
|
16
5433172
Duct-air outlet clutch
|
5433172 |
— | ||
|
18
|
18
5240409-067
Brkt,retainer seal,blk.
|
5240409-067 |
— | ||
| replacement | |||||
|
18
|
18
5242046-067
Bracket, clutch seal
|
5242046-067 |
— | ||
|
19
|
19
5410575
Seal, cover case
|
5410575 |
— | ||
|
20
|
20
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
|
21
|
21
5432698
Duct, down tube, inlet
|
5432698 |
— | ||
