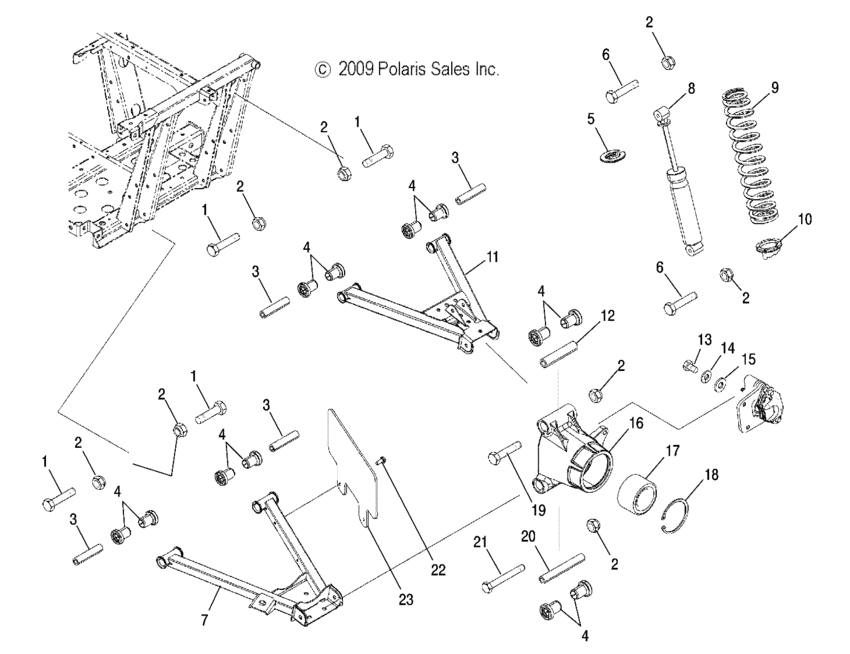

Suspension, mid and rear (M08YR68MA/76MA) Diagram Polaris MVRS 700/800 6X6 SUPPLEMENT
- Model code
- M08YR68MA/76MA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515472 Bolt |
7515472 |
US $6.56 |
||
|
2
|
2
7542439 Nut,nylok(10) |
7542439 |
US $3.94 |
||
|
3
|
3
5020826 Shaft,a-arm,short |
5020826 |
US $13.79 |
||
|
4
|
4
5434548 Bushing-a-arm-short,blk |
5434548 |
US $65.60 |
||
| replacement | |||||
|
4
|
4
5439270 Bushing-a-arm-short,blk |
5439270 |
US $65.60 |
||
|
5
|
5
5241147
Retainer, shock
|
5241147 |
— | ||
|
6
|
6
7515415 Screw(10) |
7515415 |
US $1.49 |
||
|
7
|
7
1014674-067 Control arm,lwr,lh,blk |
1014674-067 |
US $165.43 |
||
|
7
|
7
1014675-067 Control arm,lwr,rh,blk |
1014675-067 |
US $165.43 |
||
|
8
|
8
7043055 Shock-rr,irs,mv |
7043055 |
US $298.39 |
||
|
9
|
9
7043337-067 Spring-rear,blk |
7043337-067 |
US $76.81 |
||
|
10
|
10
5630551 Cam,adjust,spring |
5630551 |
US $16.24 |
||
|
11
|
11
1014948-067 Control arm,upper,blk |
1014948-067 |
US $165.43 |
||
|
12
|
12
5134549 Shaft-a-arm,upper |
5134549 |
US $13.79 |
||
|
13
|
13
7512365 Screw, cap(10)Rear Caliper Attach; |
7512365 |
US $1.49 |
||
|
14
|
14
7552901 Washer,spring lock(10)Rear Caliper Attach; |
7552901 |
US $39.40 |
||
|
15
|
15
7558402 Washer,flat(10)Rear Caliper Attach; |
7558402 |
US $18.70 |
||
|
16
|
16
5136171 Carrier-bearing,wheel,rh(mach) |
5136171 |
US $78.79 |
||
|
16
|
16
5136170 Carrier-bearing,wheel,lh(mach) |
5136170 |
US $78.79 |
||
|
17
|
17
3585502
Bearing
|
3585502 |
— | ||
| replacement | |||||
|
17
|
17
3514635 Bearing-wheel,40x74x40mmAnalog Koyo DAC4074W12CS47 |
3514635 |
US $59.06 |
||
|
18
|
18
7710440 Ring,retaining |
7710440 |
US $15.26 |
||
|
19
|
19
7515514 Bolt |
7515514 |
US $6.69 |
||
|
20
|
20
5134616 Shaft-a-arm,lower |
5134616 |
US $13.79 |
||
|
21
|
21
7518634 Scr-3/8-24x5,50 hxcs gr5-zy |
7518634 |
US $20.69 |
||
|
22
|
22
7512084 Screw(10) |
7512084 |
US $1.49 |
||
|
23
|
23
5436014-070 Shield-cv,rear,blk |
5436014-070 |
US $9.15 |
||
