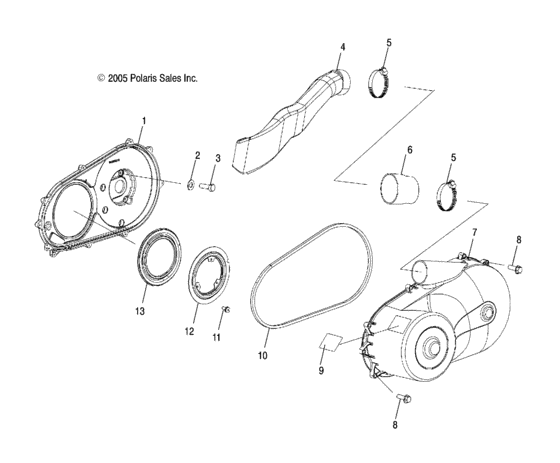

Drive train, clutch cover (M08RH76MA) Diagram Polaris MVRS 800 4X4
- Model code
- M08RH76MA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2633120 Asm-clutch cover,innerIncl. 10,13; |
2633120 |
US $147.72 |
||
|
2
|
2
7555748 Washer |
7555748 |
US $2.45 |
||
|
3
|
3
7517312 Screw (10) |
7517312 |
US $1.89 |
||
|
4
|
4
5436963
Duct, clutch, air outlet
|
5436963 |
— | ||
|
5
|
5
7081279 Clamp-band,narrow 70-90mm |
7081279 |
US $3.94 |
||
|
6
|
6
5435684 Hose-clutch,air outlet |
5435684 |
US $15.02 |
||
|
7
|
7
5433451-070
Cover, clutch, outer
|
5433451-070 |
— | ||
| replacement | |||||
|
7
|
7
5438142-070 Cover-clutch outer,hv,blk |
5438142-070 |
US $182.19 |
||
|
8
|
8
7512094 Screw(10) * |
7512094 |
US $39.40 |
||
|
9
|
9
7172563 Decal, warning, clutch cover |
7172563 |
US $3.36 |
||
|
10
|
10
5521738 Seal-outer clutch cover |
5521738 |
US $45.17 |
||
| replacement | |||||
|
10
|
10
5526450 SEAL-OUTER CLUTCH COVER |
5526450 |
US $45.17 |
||
|
11
|
11
7517867 Screw,m5x0,8x10,phpn zy,l/w sem |
7517867 |
US $2.45 |
||
|
12
|
12
5244527 Brkt-retainer seal,plated |
5244527 |
US $22.44 |
||
|
13
|
13
5412635 Seal-cover,clutch,inner |
5412635 |
US $34.49 |
||
