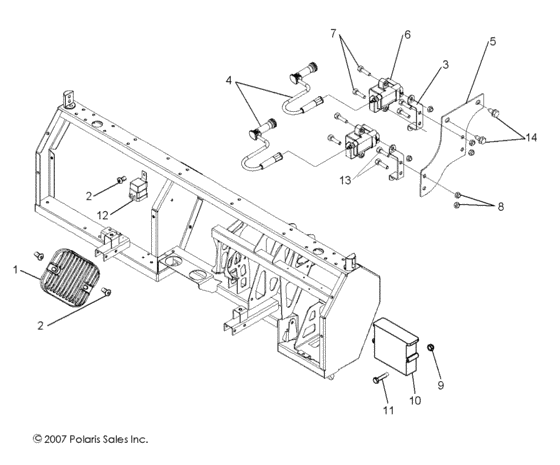

Electrical, switches, sensors and ecu (M08RH76MA) Diagram Polaris MVRS 800 4X4
- Model code
- M08RH76MA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4011925
Regulator
|
4011925 |
— | ||
| replacement | |||||
|
1
|
1
4012384 Regulator-3ph,tallfin,seal 90c |
4012384 |
US $319.83 |
||
|
2
|
2
7518196 Scr-10-24x3/4 ph/tx/tri-sems y |
7518196 |
US $0.79 |
||
|
3
|
3
5251811
Strap, coil mount
|
5251811 |
— | ||
|
4
|
4
4012048
Wire-sparkplug,75cm,di
|
4012048 |
— | ||
|
5
|
5
5251810-329
Bracket, coil mount
|
5251810-329 |
— | ||
|
6
|
6
4011703
Coil-di
|
4011703 |
— | ||
|
7
|
7
7512163 Bolt |
7512163 |
US $2.45 |
||
|
8
|
8
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
9
|
9
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
10
|
10
4011883
Ecu-base,di
|
4011883 |
— | ||
|
11
|
11
7512007 Bolt |
7512007 |
US $2.45 |
||
|
12
|
12
4011619
Relay-diff control, rear
|
4011619 |
— | ||
|
13
|
13
7512111
Bolt
|
7512111 |
— | ||
| replacement | |||||
|
13
|
13
7512240 Bolt |
7512240 |
US $2.45 |
||
|
14
|
14
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
