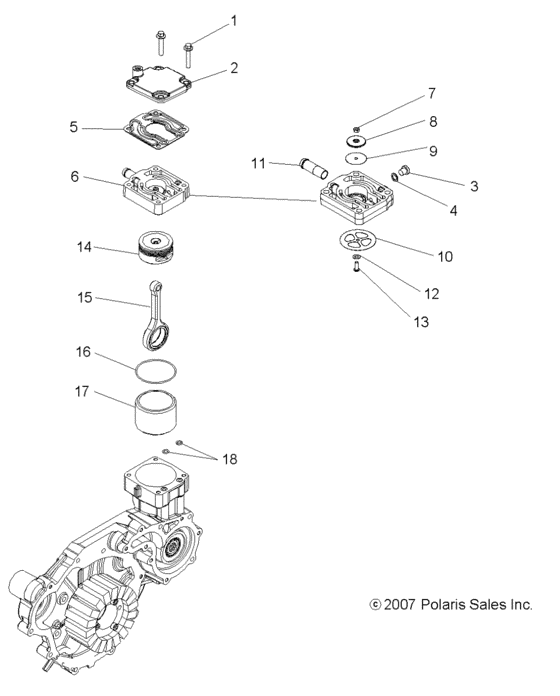

Engine, air compressor (M08RH76MA) Diagram Polaris MVRS 800 4X4
- Model code
- M08RH76MA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7516827
Screw
|
7516827 |
— | ||
|
2
|
2
1203464
Asm-compressor cover,di
|
1203464 |
— | ||
|
3
|
3
3022062 Plug,hded soc, |
3022062 |
US $7.09 |
||
|
4
|
4
7556024 Washer |
7556024 |
US $4.73 |
||
|
5
|
5
5813129
Gasket-head cover comp,di
|
5813129 |
— | ||
|
6
|
6
1203393
Asm-compressor head,di
Incl. 3,4,7-13; |
1203393 |
— | ||
|
7
|
7
7547373
Nut-m4 hex
|
7547373 |
— | ||
|
8
|
8
5135727
Reed-exhaust guide comp,di
|
5135727 |
— | ||
|
9
|
9
5250786
Valve,exhaust compressor,di
|
5250786 |
— | ||
|
10
|
10
5250785
Valve-inlet compressor,di
|
5250785 |
— | ||
|
11
|
11
7052415
Fitting-1/2",hose barb
|
7052415 |
— | ||
|
12
|
12
5250787
Washer
|
5250787 |
— | ||
|
13
|
13
7518707
Scr-m4x12,bnhd
|
7518707 |
— | ||
|
14
|
14
1203394
Asm-compressor piston,50mm,di
|
1203394 |
— | ||
|
15
|
15
1203446
Asm-rod w/bearing
|
1203446 |
— | ||
|
16
|
16
5413202
O-ring,56,9x58,7x1,8
|
5413202 |
— | ||
|
17
|
17
3021836
Liner-compressor/cylinder,di
|
3021836 |
— | ||
|
18
|
18
5413203
O-ring,6,1x7,9x1,8
|
5413203 |
— |
