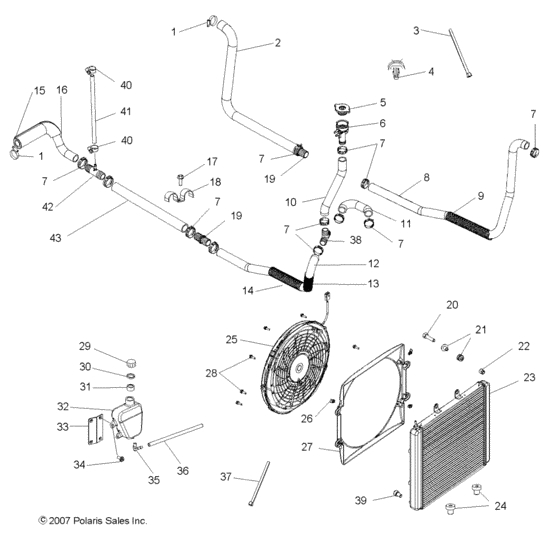

Engine, cooling system (M08RH76MA) Diagram Polaris MVRS 800 4X4
- Model code
- M08RH76MA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080843 Clamp,springband 32/12 (10) |
7080843 |
US $3.75 |
||
|
2
|
2
5412800 Hose-1" id engine outlet |
5412800 |
US $27.39 |
||
|
3
|
3
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
4
|
4
7080965 Mount-cable tie,,25 |
7080965 |
US $4.34 |
||
|
5
|
5
1240044
Cap, pressure
|
1240044 |
— | ||
|
6
|
6
5435196 Filler-neck,remote,coolant,2fit |
5435196 |
US $15.17 |
||
|
7
|
7
7080844 Clamp,springband 35/12,blk |
7080844 |
US $8.66 |
||
|
8
|
8
5413440
Hose-1"id rad inlet
|
5413440 |
— | ||
|
9
|
9
5521762
Guard-hose,9"
|
5521762 |
— | ||
|
10
|
10
5413436
Hose-1"id,filler neck
|
5413436 |
— | ||
|
11
|
11
5413435
Hose-low,radiator front
|
5413435 |
— | ||
|
12
|
12
5413434
Hose-low,radiator mid
|
5413434 |
— | ||
|
13
|
13
5521763
Guard-hose,4"
|
5521763 |
— | ||
|
14
|
14
5521764
Guard-hose,6,75"
|
5521764 |
— | ||
|
15
|
15
8450111-25
Sheath, reflect sleeve
|
8450111-25 |
— | ||
|
16
|
16
5413593
Hose-engine,inlet,1"id,rr,mvrs
|
5413593 |
— | ||
|
17
|
17
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
18
|
18
7081250 Clamp-double hose,1-3/8" |
7081250 |
US $9.85 |
||
|
19
|
19
7052381 Connector-1" splice,barbed |
7052381 |
US $7.09 |
||
|
20
|
20
7512163 Bolt |
7512163 |
US $2.45 |
||
|
21
|
21
1016169 Asm-grommet & insert |
1016169 |
US $56.14 |
||
|
22
|
22
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
23
|
23
1240392
Radiator-crossflow
|
1240392 |
— | ||
|
24
|
24
5410584
Bushing-mount,lower radiator
|
5410584 |
— | ||
|
25
|
25
2411016
Fan-16" assembly,atv,pkrd
|
2411016 |
— | ||
|
26
|
26
7547366
Clip-"u",m6,0x1,0
|
7547366 |
— | ||
|
27
|
27
5437329 Shroud-fan,atv |
5437329 |
US $51.21 |
||
|
28
|
28
7516822
Screw
|
7516822 |
— | ||
|
29
|
29
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
30
|
30
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
31
|
31
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
32
|
32
5436936 Tank-surge |
5436936 |
US $79.31 |
||
|
33
|
33
5251766
Brkt-surge tank
|
5251766 |
— | ||
|
34
|
34
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
35
|
35
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
36
|
36
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
37
|
37
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
38
|
38
7052443
Connector-t,1",barbed
|
7052443 |
— | ||
|
39
|
39
7518846
Scr-m6x1,0x10,shcs
|
7518846 |
— | ||
|
40
|
40
7080476 Clamp, hose, s,s, |
7080476 |
US $9.10 |
||
|
41
|
41
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
42
|
42
7052453
Connector-t,1x1x,25,barbed
|
7052453 |
— | ||
|
43
|
43
5413592
Hose-engine,inlet,1"id,fr,mvrs
|
5413592 |
— |
