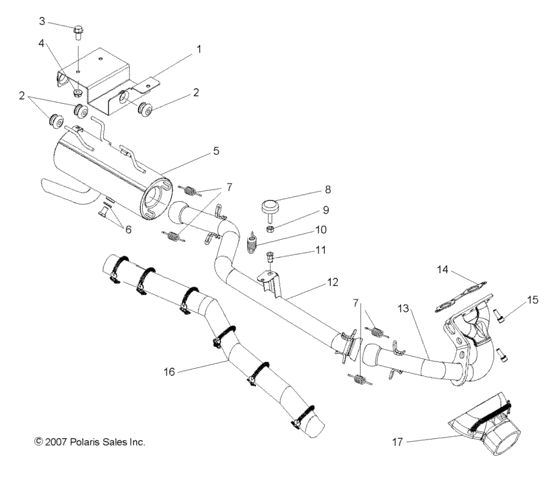

Engine, exhaust system (M08RH76MA) Diagram Polaris MVRS 800 4X4
- Model code
- M08RH76MA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5251685-329
Brkt-mnt,silencer,ecoat
|
5251685-329 |
— | ||
|
2
|
2
5413377 Grommet-silencer mount |
5413377 |
US $6.56 |
||
| replacement | |||||
|
2
|
2
5414307 Grommet-silencer mount |
5414307 |
US $7.88 |
||
|
3
|
3
7515398 Screw |
7515398 |
US $3.75 |
||
|
4
|
4
7542343 Nut,flange |
7542343 |
US $6.56 |
||
|
5
|
5
1261917
Weld-silencer,ss
|
1261917 |
— | ||
|
6
|
6
7518840
Bolt-1/2-20x3/4 hxcs ss
|
7518840 |
— | ||
|
6
|
6
7556453
Wshr-clean out,13mmx24mmx2,5mm
|
7556453 |
— | ||
|
7
|
7
7043353
Spring-exhaust,ss
|
7043353 |
— | ||
|
8
|
8
3021522 Mount-torque stop |
3021522 |
US $14.28 |
||
|
9
|
9
7542301 Nut hex |
7542301 |
US $2.45 |
||
|
10
|
10
7041687 Spring |
7041687 |
US $7.88 |
||
|
11
|
11
7547101 Nutsert-5/16-18(,027-,150),hxy |
7547101 |
US $7.68 |
||
|
12
|
12
1261931
Tube, exhaust
|
1261931 |
— | ||
|
13
|
13
1261930
Weld-manifold,twin,ss
|
1261930 |
— | ||
|
14
|
14
5811511 Gasket,26mm id |
5811511 |
US $61.57 |
||
|
15
|
15
7518234 Scr-m8x1,25x25 hx/soc sems |
7518234 |
US $3.26 |
||
|
16
|
16
1261942
Asm., headpipe wrap
|
1261942 |
— | ||
|
17
|
17
1261940
Asm., manifold wrap
|
1261940 |
— | ||
