	Description	OEM Part #	Price
1	1 7515399 Screw(10) *	7515399	US $6.13
2	2 5247826 Brkt-engine mnt,top,700	5247826	US $28.58
3	3 7555815 Washer, flat	7555815	US $3.26
4	4 3022071 Isolator-3/8-24m/m,60duro	3022071	—
	replacement
4	4 3023593 Isolator-3/8-24M/m,60Duro	3023593	US $39.38
5	5 7516734 Screw	7516734	US $7.88
6	6 5247368 Brkt-mnt,engine,top pltd	5247368	US $7.09
7	7 7547263 Nut-3/8-24 nylok	7547263	US $2.63
8	8 4011214 Cable-ground,78"/10"	4011214	US $81.22
9	9 4011249 Cable-sol/starter	4011249	US $30.08
10	10 2203749 Kit-short block mv800 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for warranty con;	2203749	US $7,941.29
11	11 7518364 Bolt-3/8-16x7/8 hex flange gr5	7518364	US $1.49
12	12 5244771-067 Mnt-engine,lower,front,blk	5244771-067	US $28.93
13	13 3021354 Stop-torque,course,3/8-16 1,50	3021354	US $19.30
14	14 7542414 Nut,hex	7542414	US $2.45
15	15 1015065-067 Eng/trans mnt,blk	1015065-067	US $53.74
16	16 3022076 Isolator-3/8-24m,3/8-16m,60dur	3022076	US $34.46
17	17 3130924 Screw Throttle Body Cover;	3130924	US $1.77
18	18 3130543 Guide,cable Throttle Body Cover;	3130543	US $19.30
19	19 3131648 Cover-tb,mikuni n236515 Throttle Body Cover;	3131648	US $21.49
20	20 7081247 Cable-throttle	7081247	US $95.38
21	21 3131649 O-ring-tb,mikuni 616-92020 Throttle Body Cover;	3131649	US $9.15
22	22 5412634 Boot-clutch intake,2,25 i,d,	5412634	US $14.04
23	23 7080451 Clamp, hose, s,s,(10)	7080451	US $4.73
24	24 7547108 Nut	7547108	US $2.98
25	25 5245043 Brkt-torque stop pltd	5245043	US $11.34

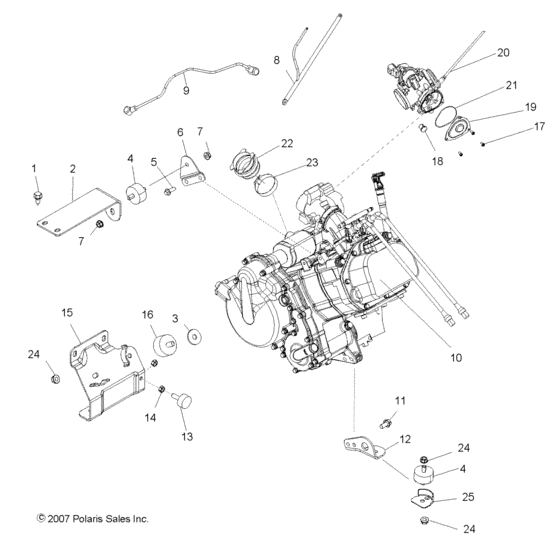

Engine, mounting (M08RH76AMA) Diagram Polaris MVRS 800 4X4 General 1529916-150824

Engine, mounting (M08RH76AMA) Diagram Polaris MVRS 800 4X4 General 1529916-150824
