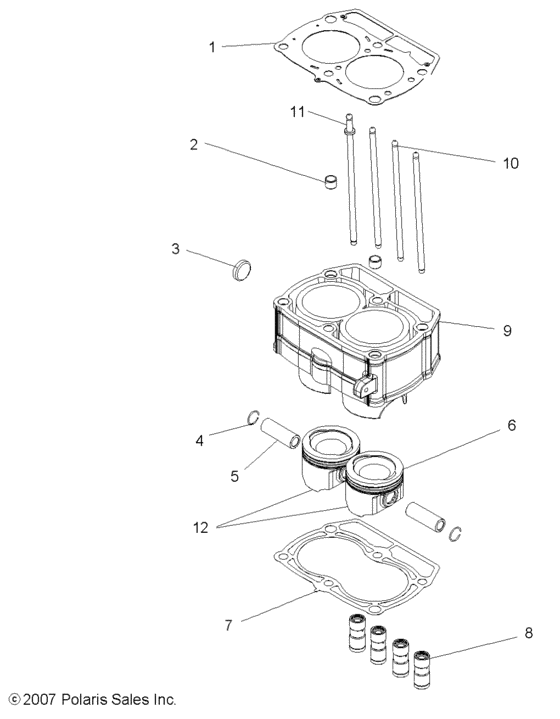

Engine, piston and cylinder (M08RH76MA) Diagram Polaris MVRS 800 4X4
- Model code
- M08RH76MA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5247359 Gasket-head |
5247359 |
US $78.26 |
||
|
2
|
2
7661175 Dowel-hol,m16x12,0600089 |
7661175 |
US $3.26 |
||
|
3
|
3
7051534 Plug-expansion 1 1/8" |
7051534 |
US $6.60 |
||
|
4
|
4
3021510 Circlip-piston |
3021510 |
US $9.85 |
||
|
6
|
6
2203451 Kit-brake pads,dh4pIncl. Qty. 1 of Top, Mid and Bottom Ring; |
2203451 |
US $40.37 |
||
|
7
|
7
5247360 Gasket-base |
5247360 |
US $40.15 |
||
|
8
|
8
5134152
Lifter, valve
|
5134152 |
— | ||
|
9
|
9
2202696
Kit-cylinder,80 mm
Incl. 3; |
2202696 |
— | ||
| replacement | |||||
|
9
|
9
2203911 Kit-cylinder,atv,5136469Incl. 3; |
2203911 |
US $697.22 |
||
|
10
|
10
5135576
Pushrod-atv,di
|
5135576 |
— | ||
|
11
|
11
5135761
Pushrod,atv,di,w/trigger
|
5135761 |
— | ||
|
12
|
12
3021804
Asm-piston,80mm,di
Incl. 4-6; |
3021804 |
— | ||
