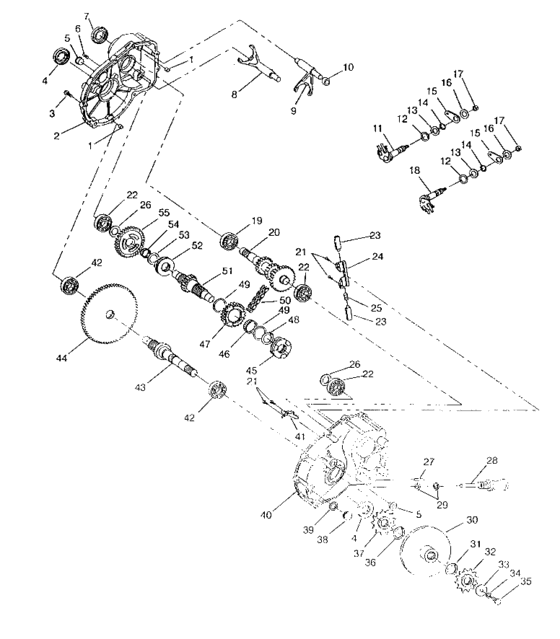

Gearcase assembly (NORWEGIAN N948740; 6x6 400L,) Diagram Polaris NORWEGIAN 400L 6X6
- Model code
- N948740
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233021 Pipe, knock |
3233021 |
US $13.20 |
||
|
2
|
2
3233002
Case, lh
|
3233002 |
— | ||
|
3
|
3
3233026 Screw |
3233026 |
US $2.98 |
||
|
4
|
4
3233096
Seal
|
3233096 |
— | ||
| replacement | |||||
|
4
|
4
3233248
Seal
|
3233248 |
— | ||
|
5
|
5
3233024
Bushing,pivot
|
3233024 |
— | ||
|
6
|
6
3233025
Stud
|
3233025 |
— | ||
|
7
|
7
3233097
Seal
|
3233097 |
— | ||
| replacement | |||||
|
7
|
7
3233248
Seal
|
3233248 |
— | ||
|
8
|
8
3233022 Shiftrail,low |
3233022 |
US $257.79 |
||
|
9
|
9
3233023
Shiftrail,high/rev, *
|
3233023 |
— | ||
|
10
|
10
3233154
Spacer-shift rail
|
3233154 |
— | ||
|
11
|
11
3233038
Shaft,low shift
|
3233038 |
— | ||
|
12
|
12
3233044
O-ring
|
3233044 |
— | ||
| replacement | |||||
|
12
|
12
3233548 O-ring |
3233548 |
US $14.58 |
||
|
13
|
13
3233040 Washer |
3233040 |
US $7.68 |
||
|
14
|
14
3233045 Ring,retaining |
3233045 |
US $3.26 |
||
|
15
|
15
3233041
Bell,crank
|
3233041 |
— | ||
| replacement | |||||
|
15
|
15
3233153 Bellcrank |
3233153 |
US $19.30 |
||
|
16
|
16
3233054 Washer |
3233054 |
US $3.26 |
||
|
17
|
17
3233055
Nut
|
3233055 |
— | ||
|
18
|
18
3233039
Shaft,hi/rev,shift
|
3233039 |
— | ||
|
19
|
19
3233019 Bearing |
3233019 |
US $39.38 |
||
|
20
|
20
3233122
Shaft, input
|
3233122 |
— | ||
|
21
|
21
3233033
Screw
|
3233033 |
— | ||
| replacement | |||||
|
21
|
21
3233747 Screw-tapping,w/lock washer |
3233747 |
US $2.45 |
||
|
22
|
22
3233018 Bearing |
3233018 |
US $29.54 |
||
|
23
|
23
3233031 Pin |
3233031 |
US $39.85 |
||
|
24
|
24
3233030 Bracket |
3233030 |
US $26.41 |
||
|
25
|
25
3233032 Spring |
3233032 |
US $8.17 |
||
|
26
|
26
3233007
Washer
|
3233007 |
— | ||
|
27
|
27
3233037 Vent |
3233037 |
US $6.41 |
||
|
28
|
28
3233034
Dipstick
|
3233034 |
— | ||
| replacement | |||||
|
28
|
28
3233478 Dipstick |
3233478 |
US $13.20 |
||
|
29
|
29
3233053
O-ring
|
3233053 |
— | ||
|
30
|
30
1910148
Disc,brake
|
1910148 |
— | ||
| replacement | |||||
|
30
|
30
1910177
Disc asm,brake
|
1910177 |
— | ||
|
31
|
31
7710434 Ring,snap(10)10; |
7710434 |
US $19.80 |
||
|
32
|
32
3221047 Sprocket, 10t |
3221047 |
US $137.88 |
||
|
33
|
33
7555701 Washer,flat10; |
7555701 |
US $3.26 |
||
|
34
|
34
7552601
Desc not_available
|
7552601 |
— | ||
|
35
|
35
7515321 Bolt10; |
7515321 |
US $1.89 |
||
|
36
|
36
7710433 Ring,retaining10; |
7710433 |
US $2.98 |
||
|
37
|
37
3221046
Spkt, 10t
|
3221046 |
— | ||
|
38
|
38
3233028
Plug,oil drain
|
3233028 |
— | ||
| replacement | |||||
|
38
|
38
3233448 Plug |
3233448 |
US $17.54 |
||
|
39
|
39
3233035 Washer |
3233035 |
US $4.53 |
||
|
40
|
40
3233003
Case, rh
|
3233003 |
— | ||
|
41
|
41
3233043 Deflector,oil |
3233043 |
US $16.24 |
||
|
42
|
42
3233020 Bearing |
3233020 |
US $54.18 |
||
|
43
|
43
3233123
Shaft,output
|
3233123 |
— | ||
|
44
|
44
3233130
Gear, 65t
|
3233130 |
— | ||
|
45
|
45
3233128 Dog,engagement,hi/rev, * |
3233128 |
US $148.72 |
||
|
46
|
46
3233014 Bearing,needle |
3233014 |
US $48.72 |
||
|
47
|
47
3233127 Sprocket, 24t * |
3233127 |
US $101.45 |
||
|
48
|
48
3233029 Ring,retaining |
3233029 |
US $3.75 |
||
|
49
|
49
3233012 Washer |
3233012 |
US $15.26 |
||
|
50
|
50
3233036 Chain,silent,34p |
3233036 |
US $65.99 |
||
|
51
|
51
3233124
Shaft,reverse
|
3233124 |
— | ||
|
52
|
52
3233126 Dog,engagement,low |
3233126 |
US $148.72 |
||
|
53
|
53
3233010 Washer |
3233010 |
US $15.26 |
||
|
54
|
54
3233009 Bearing,needle |
3233009 |
US $42.35 |
||
|
55
|
55
3233125
Gear, 33t *
|
3233125 |
— | ||
