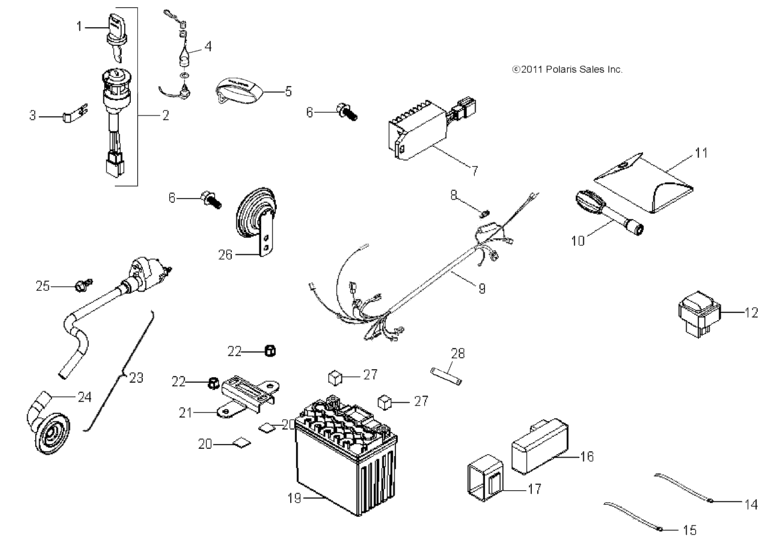

Electrical, switches, harness and parts (A11KA05AB/AD) Diagram Polaris OUTLAW 50
- Model code
- A11KA05AB/AD
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0454728
Key, black, lh
|
0454728 |
— | ||
|
1
|
1
0454729
Key, black, rh
|
0454729 |
— | ||
|
2
|
2
0454724
Asm., switch, main
Incl. 1-3; |
0454724 |
— | ||
|
3
|
3
0450549
Clip, main switch
|
0450549 |
— | ||
|
4
|
4
0451693
Switch,safety
|
0451693 |
— | ||
|
5
|
5
0453501 Wristband-safety |
0453501 |
US $27.39 |
||
|
6
|
6
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
7
|
7
0454702
Rectifier/regulator
|
0454702 |
— | ||
|
8
|
8
0450842
Fuse
|
0450842 |
— | ||
|
9
|
9
0454730
Harness, main
|
0454730 |
— | ||
|
10
|
10
0450891
Gauge, tire
|
0450891 |
— | ||
|
11
|
11
0454703 Pouch, tool |
0454703 |
US $20.13 |
||
|
12
|
12
0453488 Asm-starter relay |
0453488 |
US $59.83 |
||
|
14
|
14
0450559 Strap(10) |
0450559 |
US $0.79 |
||
|
15
|
15
0450721 Strap(10)* |
0450721 |
US $2.28 |
||
|
16
|
16
0454723 Asm., cdiIncl. 17; |
0454723 |
US $259.86 |
||
|
17
|
17
0453473 Pad-rubber,cdi |
0453473 |
US $21.49 |
||
|
19
|
19
4011181 Battery-yuasa ytx5l,youth |
4011181 |
US $75.79 |
||
|
20
|
20
0453895 Retainer-battery,rubber |
0453895 |
US $1.66 |
||
|
21
|
21
0453896 Brkt-battery,pred 50 |
0453896 |
US $12.20 |
||
|
22
|
22
0450150 Nut-flange,hex(10)* |
0450150 |
US $0.79 |
||
|
23
|
23
0453894 Asm-ignition coil,pred 50Incl. 24,25; |
0453894 |
US $85.45 |
||
|
24
|
24
0453364 Cap-spark plug,phoenix |
0453364 |
US $31.52 |
||
|
25
|
25
0452763 Bolt-hex,sems |
0452763 |
US $0.79 |
||
|
26
|
26
0451695 Horn |
0451695 |
US $31.43 |
||
|
27
|
27
0454701 Cap-battery,terminal |
0454701 |
US $3.26 |
