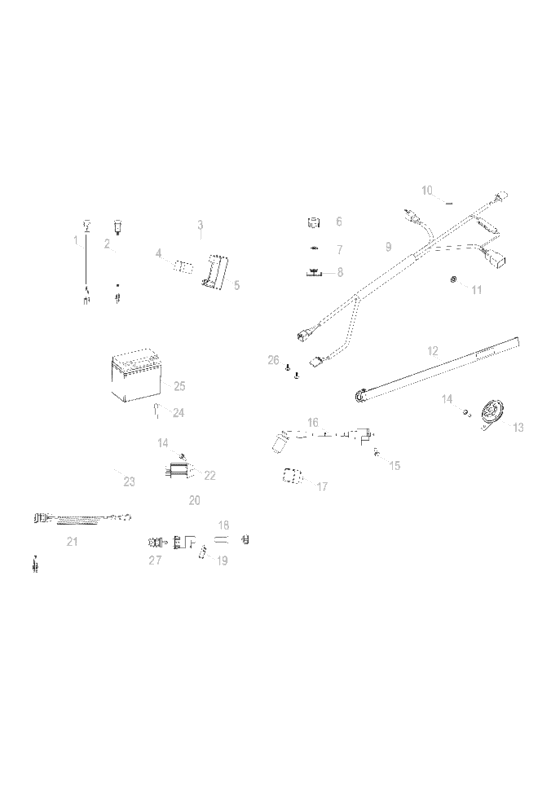

Electrical, Switches, Harness And Indicators (A16YAK09AF (A00028)) Diagram Polaris OUTLAW 90
- Model code
- A16YAK09AF
- Year
- 2016
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0454654 Indicator, neutral |
0454654 |
US $13.20 |
||
|
2
|
2
0454655 Indicator, reverse |
0454655 |
US $18.32 |
||
|
3
|
3
0455191 ASM-CDI,ESCINCL. 4,5 |
0455191 |
US $243.43 |
||
|
4
|
4
0453473 Pad-rubber,cdi |
0453473 |
US $21.49 |
||
|
6
|
6
0455189 CAP-RUBBER |
0455189 |
US $3.26 |
||
|
7
|
7
0451019 Jumper |
0451019 |
US $2.28 |
||
|
8
|
8
0455188 BOARD-TERMINAL,SPEED CONTROL |
0455188 |
US $15.26 |
||
|
9
|
9
0455192 HARNESS-MAIN WIRE,90 |
0455192 |
US $274.72 |
||
|
10
|
10
0453523 Fuse |
0453523 |
US $15.02 |
||
|
11
|
11
0450890 Washer-star(10) |
0450890 |
US $0.79 |
||
|
12
|
12
0453501 Wristband-safety |
0453501 |
US $27.39 |
||
|
13
|
13
0451695 Horn |
0451695 |
US $31.43 |
||
|
14
|
14
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
15
|
15
0452763 Bolt-hex,sems |
0452763 |
US $0.79 |
||
|
16
|
16
0452309 Asm-coil,ignition |
0452309 |
US $118.06 |
||
|
17
|
17
0453488 Asm-starter relay |
0453488 |
US $59.83 |
||
|
19
|
19
0450549
Clip, main switch
|
0450549 |
— | ||
|
20
|
20
0453487
Asm-switch,main
INCL. 18,19,27 |
0453487 |
— | ||
|
21
|
21
0451693
Switch,safety
|
0451693 |
— | ||
|
22
|
22
0454003 Rectifier/regulator-voltage 07 |
0454003 |
US $107.52 |
||
|
23
|
23
0454703 Pouch, tool |
0454703 |
US $20.13 |
||
|
24
|
24
0450891
Gauge, tire
|
0450891 |
— | ||
|
25
|
25
4011181 Battery-yuasa ytx5l,youth |
4011181 |
US $75.79 |
||
|
26
|
26
0455026 SCREW |
0455026 |
US $3.26 |
||
|
27
|
27
0453143 Key-blank,2006 |
0453143 |
US $13.20 |
||
|
27
|
27
0453372 Key-blank,2006,lh |
0453372 |
US $13.20 |
