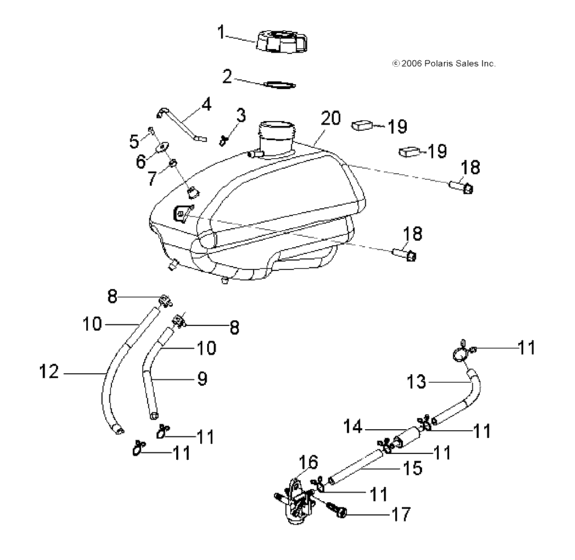

Fuel tank (A07KA09AA/AB/AD) Diagram Polaris OUTLAW 90
- Model code
- A07KA09AA/AB/AD
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0453928 Asm-cap,fuelIncl. 2; |
0453928 |
US $35.58 |
||
|
2
|
2
0453692 Gasket-fuel cap,outlaw |
0453692 |
US $2.66 |
||
|
3
|
3
0453944 Clamp |
0453944 |
US $1.49 |
||
|
4
|
4
0453697
Hose-vent,outlaw
|
0453697 |
— | ||
|
5
|
5
0453699 Screw |
0453699 |
US $0.79 |
||
|
6
|
6
0452913 Washer-plain,5x25x2 |
0452913 |
US $1.49 |
||
|
7
|
7
0453698 Spacer |
0453698 |
US $2.28 |
||
|
8
|
8
0453693 Clamp-hose |
0453693 |
US $3.26 |
||
|
9
|
9
0454124 Hose-fuel w/sleeve |
0454124 |
US $16.24 |
||
|
10
|
10
0454121
Hose-fuel w/sleeve
|
0454121 |
— | ||
|
11
|
11
0450054 Clip(10) * |
0450054 |
US $1.49 |
||
|
12
|
12
0453945 Hose-formed |
0453945 |
US $8.17 |
||
|
13
|
13
0450363-440 Line-fuel |
0450363-440 |
US $11.43 |
||
|
14
|
14
0453695
Filter, fuel
|
0453695 |
— | ||
|
15
|
15
0450363-440 Line-fuel |
0450363-440 |
US $11.43 |
||
|
16
|
16
0450366 Manual fuel cup,asm, |
0450366 |
US $31.52 |
||
|
17
|
17
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
18
|
18
0450340
Bolt
|
0450340 |
— | ||
|
19
|
19
0453696 Adhesive-ele wire |
0453696 |
US $2.66 |
||
|
20
|
20
0453328 Tank-fuel |
0453328 |
US $112.28 |
