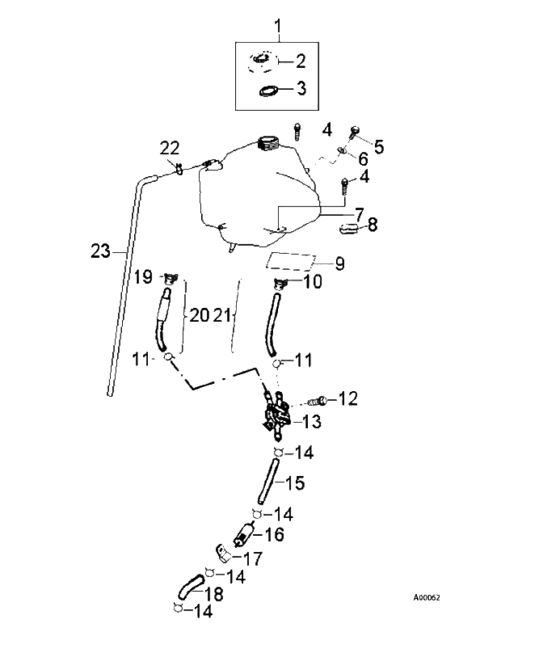

Body, Fuel Tank Asm (A17YAP20A8/N8 (A00062)) Diagram Polaris PHOENIX 200
- Model code
- A17YAP20A8/N8
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0453928 Asm-cap,fuel |
0453928 |
US $35.58 |
||
|
2
|
2
0453691 Cap-fuel,outlawINCL. 3 |
0453691 |
US $21.49 |
||
|
3
|
3
0453692 Gasket-fuel cap,outlaw |
0453692 |
US $2.66 |
||
|
4
|
4
0452216 Bolt-hex |
0452216 |
US $2.05 |
||
|
5
|
5
0450676 Screw-tapping(10) * |
0450676 |
US $2.45 |
||
|
6
|
6
0452913 Washer-plain,5x25x2 |
0452913 |
US $1.49 |
||
|
7
|
7
0455245 TANK-FUEL,PHOENIX |
0455245 |
US $317.10 |
||
|
8
|
8
0450632 Mat,rubber,fuel tank |
0450632 |
US $1.28 |
||
|
9
|
9
0452645 Foil-tank |
0452645 |
US $8.17 |
||
|
10
|
10
0453693 Clamp-hose |
0453693 |
US $3.26 |
||
|
11
|
11
0450054 Clip(10) * |
0450054 |
US $1.49 |
||
|
12
|
12
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
13
|
13
0450366 Manual fuel cup,asm, |
0450366 |
US $31.52 |
||
|
14
|
14
0450054 Clip(10) * |
0450054 |
US $1.49 |
||
|
15
|
15
0454026 Hose, fuel |
0454026 |
US $16.24 |
||
|
16
|
16
0453695
Filter, fuel
|
0453695 |
— | ||
|
17
|
17
0452646 Clamp |
0452646 |
US $6.69 |
||
|
18
|
18
0454026 Hose, fuel |
0454026 |
US $16.24 |
||
|
19
|
19
0450361
Clip(10)
|
0450361 |
— | ||
|
20
|
20
0455264
ASM-HOSE,FUEL,W/SLEEVE,MAIN
INCL. 11,19 |
0455264 |
— | ||
|
21
|
21
0455263
ASM-HOSE,FUEL,W/SLEEVE,RESERVE
INCL. 10,11 |
0455263 |
— | ||
|
22
|
22
0455267
Clamp-Hose
|
0455267 |
— | ||
|
23
|
23
0455270 FUEL LINE,PHOENIX |
0455270 |
US $14.28 |
