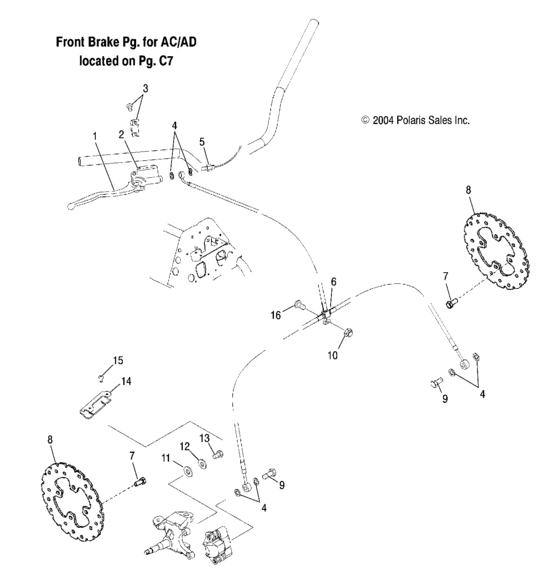

Brake, front (A05PB20AA/AB; AA; AB) Diagram Polaris PHOENIX 200
- Model code
- A05PB20AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2202406 Kit-mstr cyl lever,hb3p |
2202406 |
US $59.10 |
||
|
2
|
2
1910590 Master cyl,asm,1/2",remote-uppe |
1910590 |
US $244.23 |
||
|
3
|
3
2202409 Kit-master cylinder clamp,hb3p |
2202409 |
US $27.58 |
||
|
4
|
4
5410988
Seal
|
5410988 |
— | ||
|
5
|
5
4010758 Switch-pressure,brake,w/con |
4010758 |
US $59.10 |
||
|
6
|
6
0452870 Line-brake,front,j/b,crimped |
0452870 |
US $261.94 |
||
|
7
|
7
7512325 Bolt |
7512325 |
US $5.25 |
||
|
8
|
8
5247752 Brake-disc,7,0 od |
5247752 |
US $73.87 |
||
|
9
|
9
1910499 Bolt-banjo,10mmx1,00 |
1910499 |
US $7.68 |
||
|
10
|
10
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
11
|
11
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
12
|
12
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
13
|
13
7512365 Screw, cap(10) |
7512365 |
US $1.49 |
||
|
14
|
14
5435861 Retainer-brake line,front |
5435861 |
US $16.24 |
||
|
15
|
15
7517396 Screw |
7517396 |
US $3.94 |
||
|
16
|
16
7512297 Screw |
7512297 |
US $4.43 |
