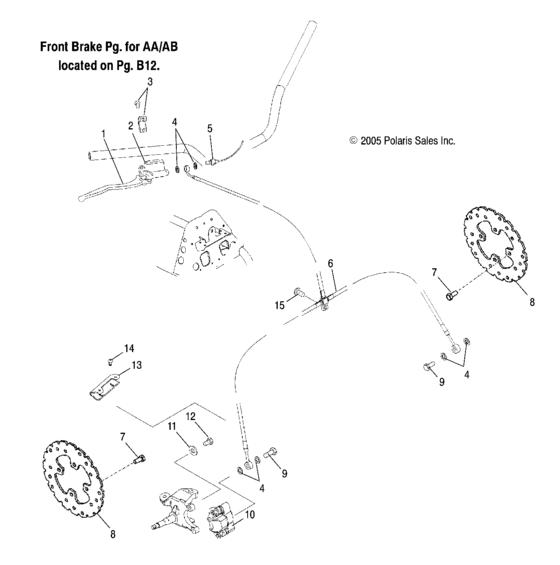

Brake, front (A05PB20AC/AD; AC; AD) Diagram Polaris PHOENIX 200
- Model code
- A05PB20AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2202406 Kit-mstr cyl lever,hb3p |
2202406 |
US $59.10 |
||
|
2
|
2
0453017
Asm-master cylinder,rh
|
0453017 |
— | ||
|
3
|
3
2202409 Kit-master cylinder clamp,hb3p |
2202409 |
US $27.58 |
||
|
4
|
4
0452872
Seal-stat-o,quad
|
0452872 |
— | ||
|
5
|
5
0450836 Cable-swtch,snsr |
0450836 |
US $25.50 |
||
|
6
|
6
0453081 Line-brk,frt,j/b,crp,quad,twan |
0453081 |
US $228.45 |
||
|
7
|
7
0452904 Bolt-brake disc |
0452904 |
US $4.73 |
||
|
8
|
8
0453010 Disc-brake,front |
0453010 |
US $113.73 |
||
|
9
|
9
0452871 Bolt-banjo |
0452871 |
US $8.66 |
||
|
10
|
10
0453018 Asm-caliper,lh |
0453018 |
US $303.29 |
||
|
10
|
10
0453019 Asm-caliper,rh |
0453019 |
US $303.29 |
||
|
11
|
11
0452325 Washer-flat |
0452325 |
US $1.61 |
||
|
12
|
12
0453016 Bolt-hex,washer face |
0453016 |
US $2.45 |
||
|
13
|
13
0453079 Retainer-brake line,front |
0453079 |
US $20.69 |
||
|
14
|
14
0451703 Screw,tapping |
0451703 |
US $1.49 |
||
|
15
|
15
0452782 Bolt-hex |
0452782 |
US $4.73 |
