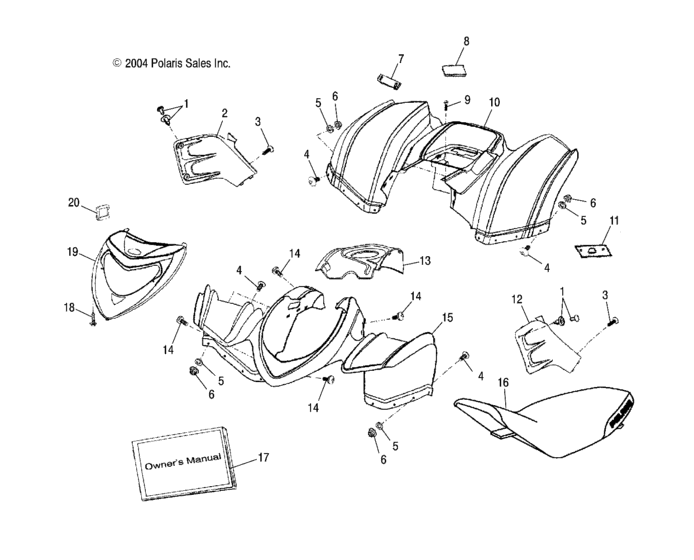

Cab/seat (A05PB20AA/AB/AC/AD) Diagram Polaris PHOENIX 200
- Model code
- A05PB20AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0451076 Rivet,plastic(10) |
0451076 |
US $1.89 |
||
|
2
|
2
0452653-070 Panel-side,phoenix,right,blk |
0452653-070 |
US $142.80 |
||
|
3
|
3
0451703 Screw,tapping |
0451703 |
US $1.49 |
||
|
4
|
4
0450622 Bolt-phillips(10)* |
0450622 |
US $3.75 |
||
|
5
|
5
0450710 Washer-plain(10) * |
0450710 |
US $1.89 |
||
|
6
|
6
0450741 Nut,lock(10) * |
0450741 |
US $3.94 |
||
|
7
|
7
0452660 Strap-battery,rubber |
0452660 |
US $8.17 |
||
|
8
|
8
0450346 Foam,battery pad |
0450346 |
US $0.79 |
||
|
9
|
9
0452215 Bolt-hex |
0452215 |
US $1.49 |
||
|
10
|
10
0452632-293
Cab, rear, indy red
|
0452632-293 |
— | ||
|
10
|
10
0452632-341
Cab, rear, sonic blue
|
0452632-341 |
— | ||
|
11
|
11
0450345 Pad,foil,protector |
0450345 |
US $25.43 |
||
|
12
|
12
0452651-070 Panel-side,phoenix,left,blk |
0452651-070 |
US $142.80 |
||
|
13
|
13
0452655-070
Cover, fuel tank, black
|
0452655-070 |
— | ||
|
14
|
14
0450824 Bolt-w/wshr,hex(10) |
0450824 |
US $2.45 |
||
|
15
|
15
0452631-293
Cab, front, indy red
|
0452631-293 |
— | ||
|
15
|
15
0452631-341
Cab, front, sonic blue
|
0452631-341 |
— | ||
|
16
|
16
0452638
Seat
|
0452638 |
— | ||
|
17
|
17
9919964 Man-own,05 phoenix 200 |
9919964 |
US $45.68 |
||
|
18
|
18
0450040 Screw-tapping(10)* |
0450040 |
US $0.79 |
||
|
19
|
19
0452650-070
Cover-headlight,blk
|
0452650-070 |
— | ||
|
20
|
20
0452662 Boot-rubber,shift |
0452662 |
US $16.89 |
