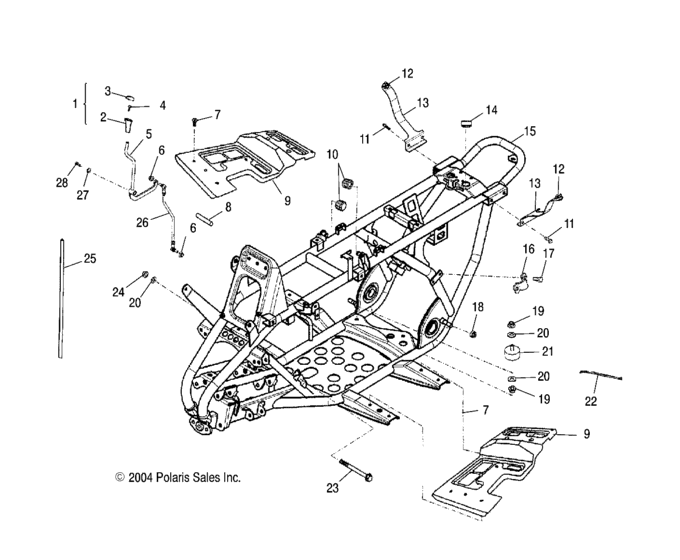

Frame body (A05PB20AA/AB/AC/AD) Diagram Polaris PHOENIX 200
- Model code
- A05PB20AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450966
Grip-trans lever
|
0450966 |
— | ||
|
2
|
2
0452168 Knob-transmission lever |
0452168 |
US $7.09 |
||
|
3
|
3
0450967 Cover-transmission lever knob |
0450967 |
US $8.17 |
||
|
4
|
4
0450309
Bolt
|
0450309 |
— | ||
|
5
|
5
0452601 Shift lever |
0452601 |
US $46.87 |
||
|
6
|
6
0450268 Nut-flange(10) |
0450268 |
US $0.79 |
||
|
7
|
7
0452597 Screw-phil, fat head |
0452597 |
US $1.61 |
||
|
8
|
8
0452596 Dampner-foot brake lever |
0452596 |
US $14.16 |
||
|
9
|
9
0452594 Plate-footwell |
0452594 |
US $49.18 |
||
|
10
|
10
0452591 Grommet-seat |
0452591 |
US $9 |
||
|
11
|
11
0452598 Asm-bolt |
0452598 |
US $8.02 |
||
|
12
|
12
0450800 Rubber(10) * |
0450800 |
US $1.89 |
||
|
13
|
13
0452593 Brkt-cab support |
0452593 |
US $40.58 |
||
|
14
|
14
0450290 Rubber,seat 77220-131-000 |
0450290 |
US $6.11 |
||
|
15
|
15
0452590 Asm-frame |
0452590 |
US $1,193.55 |
||
|
16
|
16
0452602 Brkt-kick start |
0452602 |
US $6.11 |
||
|
17
|
17
0450309
Bolt
|
0450309 |
— | ||
|
18
|
18
0452799 Nut-hex (kick starter) |
0452799 |
US $2.98 |
||
|
19
|
19
0450882
Nut-lock,nylon 90350-10000-uc
|
0450882 |
— | ||
|
20
|
20
0450279 Washer(10) |
0450279 |
US $0.79 |
||
|
21
|
21
0452592 Mount-engine |
0452592 |
US $43.72 |
||
|
22
|
22
0450559 Strap(10) |
0450559 |
US $0.79 |
||
|
23
|
23
0452599 Bolt-hex,sems |
0452599 |
US $10.73 |
||
|
24
|
24
0450276 Nut-lock(10) |
0450276 |
US $1.89 |
||
|
25
|
25
0452603 Trim-rubber |
0452603 |
US $2.66 |
||
|
26
|
26
0452600 Shift-linkage |
0452600 |
US $95.31 |
||
|
27
|
27
0452198 Washer-flat |
0452198 |
US $0.79 |
||
|
28
|
28
0450298 Bolt-hex(10) * |
0450298 |
US $3.75 |
