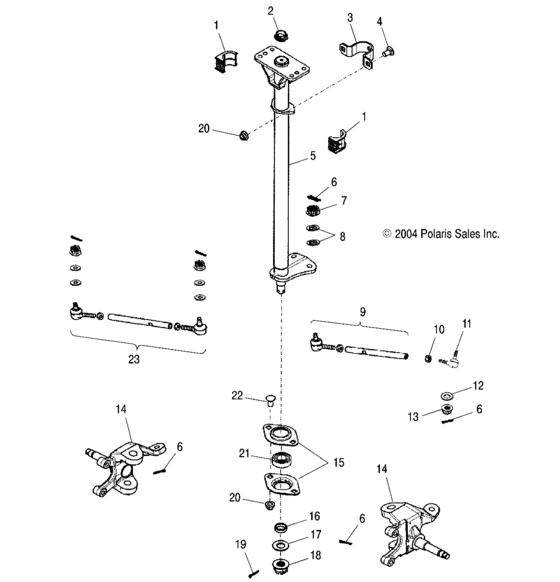

Steering (A05PB20AA/AB/AC/AD) Diagram Polaris PHOENIX 200
- Model code
- A05PB20AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0452709 Bushing-steering,upper |
0452709 |
US $17.24 |
||
|
2
|
2
0452704 Cap-rubber,steering post |
0452704 |
US $1.91 |
||
|
3
|
3
0452713
Brkt-bushing,upper
|
0452713 |
— | ||
|
4
|
4
0452716 Bolt-carriage |
0452716 |
US $1 |
||
|
5
|
5
0452703
Post-steering,phoenix
|
0452703 |
— | ||
|
6
|
6
0450719
Pin-cotter(10)
|
0450719 |
— | ||
|
7
|
7
0450502 Nut-lock |
0450502 |
US $7.68 |
||
|
8
|
8
0450279 Washer(10) |
0450279 |
US $0.79 |
||
|
9
|
9
0453082 Rod-tie,phoenixAA;AB; |
0453082 |
US $51.98 |
||
|
10
|
10
7542432 Nut, jamAA;AB; |
7542432 |
US $2.45 |
||
|
11
|
11
7061113 Rod-end,3/8-24,rhAA;AB; |
7061113 |
US $56.30 |
||
|
12
|
12
7555806 Washer,flat(10)AA;AB; |
7555806 |
US $13.10 |
||
|
13
|
13
0450502 Nut-lock |
0450502 |
US $7.68 |
||
|
14
|
14
1822643 Asm-steering knuckle,lhAA;AB; |
1822643 |
US $271.78 |
||
|
14
|
14
1822644
Asm-steering knuckle,rh
AA;AB; |
1822644 |
— | ||
|
14
|
14
0452274 Knuckle-phoenix,lh,5132539aAC;AD; |
0452274 |
US $294.46 |
||
|
14
|
14
0452275 Knuckle-phoenix,rh,5133039aAC;AD; |
0452275 |
US $304.31 |
||
|
15
|
15
0452707 Flangette-two bolt |
0452707 |
US $8.17 |
||
|
16
|
16
0452719 Spacer-ring |
0452719 |
US $7.18 |
||
|
17
|
17
0452671 Washer-18x35x2,0 |
0452671 |
US $2.45 |
||
|
18
|
18
0452669 Nut-castle |
0452669 |
US $12.11 |
||
|
19
|
19
0450395 Pin-cotter (10) |
0450395 |
US $0.79 |
||
|
20
|
20
0450882
Nut-lock,nylon 90350-10000-uc
|
0450882 |
— | ||
|
21
|
21
0450261
Bearing, ball
|
0450261 |
— | ||
|
22
|
22
0452776 Bolt-carriage |
0452776 |
US $3.26 |
||
|
23
|
23
0452783 Asm-tie rod,phoenixAC;AD; |
0452783 |
US $127.05 |
