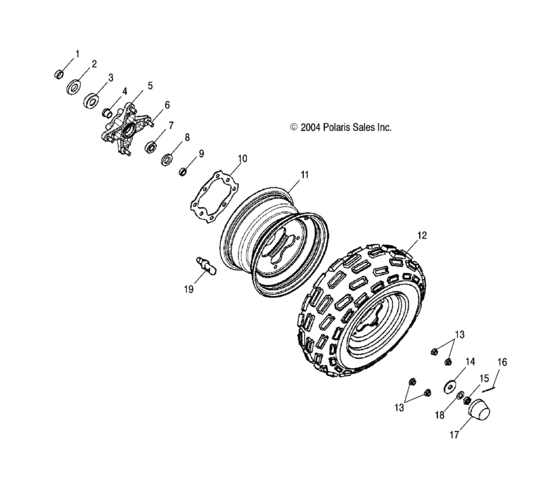

Wheel, front (A05PB20AA/AB/AC/AD) Diagram Polaris PHOENIX 200
- Model code
- A05PB20AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0453005 Spacer-collar,inside |
0453005 |
US $4.94 |
||
|
2
|
2
0453008 Seal-oil,outside |
0453008 |
US $15.75 |
||
|
3
|
3
0453009 Bearing-ball,radial,outside |
0453009 |
US $35.46 |
||
|
4
|
4
0453006 Spacer-collar,center |
0453006 |
US $4.94 |
||
|
5
|
5
0452273 Hub-front,phoenix |
0452273 |
US $84.46 |
||
|
6
|
6
0453054 Bolt-stud,wheel |
0453054 |
US $6.69 |
||
|
7
|
7
0453004 Bearing-ball,radial |
0453004 |
US $35.46 |
||
|
8
|
8
0453003 Seal-oil |
0453003 |
US $15.75 |
||
|
9
|
9
0453007 Spacer-collar,outside |
0453007 |
US $4.94 |
||
|
10
|
10
0452664 Spacer |
0452664 |
US $7.86 |
||
|
11
|
11
0452657 Rim-front |
0452657 |
US $141.98 |
||
|
12
|
12
0452786 Tire-duro,21x7-10 |
0452786 |
US $89.60 |
||
|
13
|
13
0450882
Nut-lock,nylon 90350-10000-uc
|
0450882 |
— | ||
|
14
|
14
0453001 Washer-flat |
0453001 |
US $3.26 |
||
|
15
|
15
0453002 Nut-wheel,castle |
0453002 |
US $6.69 |
||
|
16
|
16
0450395 Pin-cotter (10) |
0450395 |
US $0.79 |
||
|
17
|
17
0452661 Cap-hub |
0452661 |
US $15.70 |
||
|
18
|
18
0452663 Washer |
0452663 |
US $2.35 |
||
|
19
|
19
0450401 Valve,rim |
0450401 |
US $6.11 |
