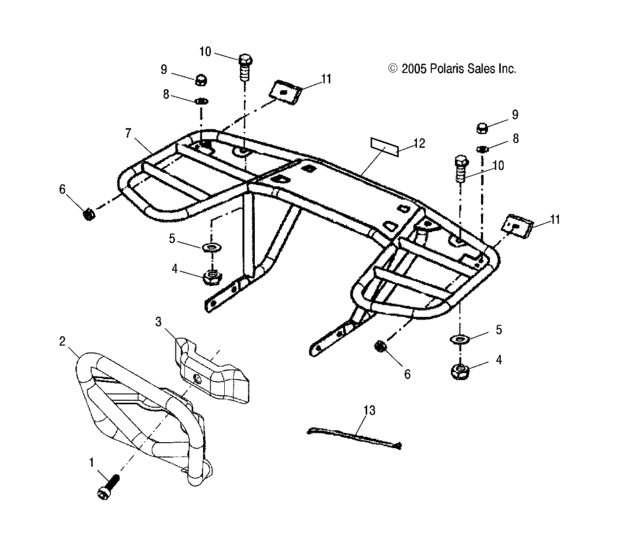

Bumper/rack (A06PB20EA/EB) Diagram Polaris PHOENIX 200 QUAD
- Model code
- A06PB20EA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0452620 Bolt-hax,flange,m10xp1,25xl25 |
0452620 |
US $7.35 |
||
|
2
|
2
0452618-385 Bumper-phoenix,front,silver |
0452618-385 |
US $165.13 |
||
|
3
|
3
0452619-385
Support-bumper,front,silver
|
0452619-385 |
— | ||
|
4
|
4
0450808 Nut-lock(10) * |
0450808 |
US $3.75 |
||
|
5
|
5
0452864 Washer-plain |
0452864 |
US $0.79 |
||
|
6
|
6
0450447 Nut-flange(10)* |
0450447 |
US $2.45 |
||
|
7
|
7
0452862
Rack-rear quad
|
0452862 |
— | ||
|
8
|
8
0451822 Washer-black |
0451822 |
US $1.77 |
||
|
9
|
9
0452863 Cap-nut |
0452863 |
US $2.28 |
||
|
10
|
10
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
11
|
11
0450446 Reflector,rear |
0450446 |
US $7.09 |
||
|
12
|
12
7173312
Decal, warning rack, 70 lbs.
|
7173312 |
— | ||
|
13
|
13
0450742 Strap(10) |
0450742 |
US $1.89 |
