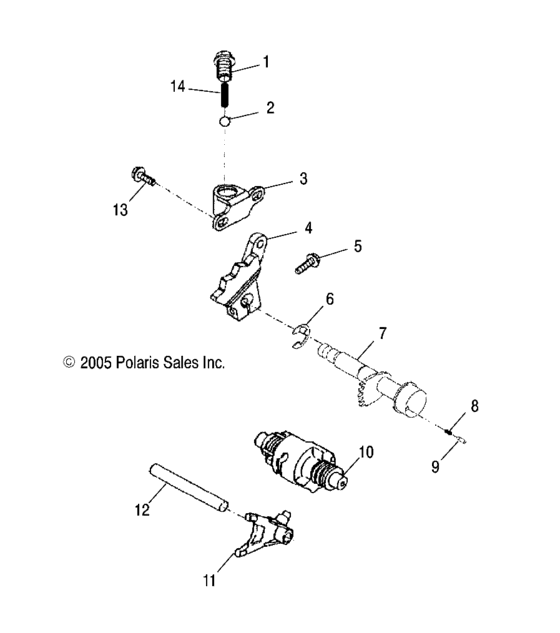

Drum shift (A06PB20EA/EB) Diagram Polaris PHOENIX 200 QUAD
- Model code
- A06PB20EA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0452635 Bolt-detent |
0452635 |
US $10.82 |
||
|
2
|
2
0452134 Ball-steel |
0452134 |
US $3.64 |
||
|
3
|
3
0452634 Housing |
0452634 |
US $43.72 |
||
|
4
|
4
0452633 Detent |
0452633 |
US $61.72 |
||
|
5
|
5
0450189
Bolt
|
0450189 |
— | ||
|
6
|
6
0452161 E-clip |
0452161 |
US $1.77 |
||
|
7
|
7
0452160 Spindle-shift |
0452160 |
US $56.14 |
||
|
8
|
8
0452162 Spring-drum sensor |
0452162 |
US $1.28 |
||
|
9
|
9
0452163 Roller-drum sensor |
0452163 |
US $2.28 |
||
|
10
|
10
0452159 Drum-gear shift asm |
0452159 |
US $206.78 |
||
|
11
|
11
0452157 Fork-shift |
0452157 |
US $60.22 |
||
|
12
|
12
0452158 Shaft-gear shift |
0452158 |
US $5.92 |
||
|
13
|
13
0453814 Bolt-8mm |
0453814 |
US $2.28 |
||
|
14
|
14
0453033 Spring-detent,10kg (10) |
0453033 |
US $1.98 |
