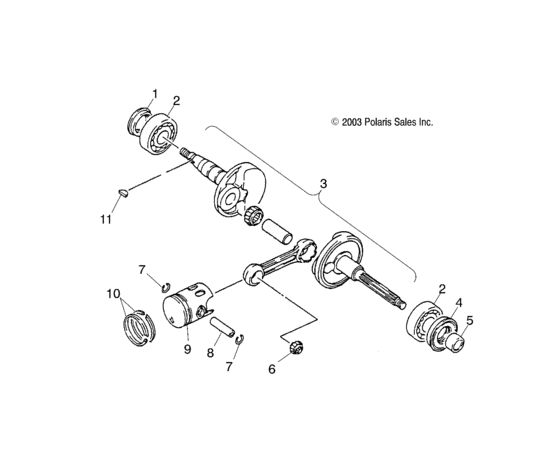

Crankshaft (A04KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A04KA05CA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450018 Seal oil * |
0450018 |
US $18.73 |
||
|
2
|
2
0450016 Bearing-ball,radl |
0450016 |
US $35.46 |
||
|
3
|
3
0450013 Crankshaft |
0450013 |
US $627.27 |
||
|
4
|
4
0450017 Seal-oil (10)* |
0450017 |
US $15.75 |
||
|
5
|
5
0450019 Collar,crank,lh |
0450019 |
US $3.94 |
||
|
6
|
6
0450028 Bearing-needle* |
0450028 |
US $31.52 |
||
|
7
|
7
0450026 Clip-piston pin* |
0450026 |
US $1.49 |
||
|
8
|
8
0450022 Pin-piston * |
0450022 |
US $29.54 |
||
|
9
|
9
0450801 Piston,standardStd; |
0450801 |
US $82.72 |
||
|
9
|
9
0450652 Piston,,010"/,25mm o/s |
0450652 |
US $82.72 |
||
|
9
|
9
0450733 Piston,,020"/,50mm o/s.50mm O/S; |
0450733 |
US $83.72 |
||
|
10
|
10
0450024 Ring,piston(2pc set)-std 50cc *Std; |
0450024 |
US $29.52 |
||
|
10
|
10
0450810 Ring set,2pc - 50cc ,25mm o/s.25mm O/S; |
0450810 |
US $42.05 |
||
|
10
|
10
0450734 Ring set,2pc - 50cc ,50mm o/s *.50mm O/S; |
0450734 |
US $53.87 |
||
|
11
|
11
0450015 Key-semicycle |
0450015 |
US $3.94 |
