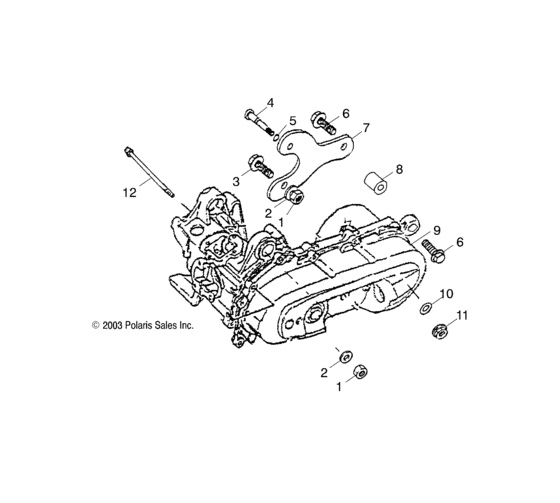

Engine bracket (A04KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A04KA05CA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0451751 Nut-nylock,12mm |
0451751 |
US $2.45 |
||
|
2
|
2
0450286 Washer(10) |
0450286 |
US $1.89 |
||
|
3
|
3
0451750 Bolt-hex flange,12mm |
0451750 |
US $6.69 |
||
|
4
|
4
0450266 Shaft,fixed,eng brkt |
0450266 |
US $12.81 |
||
|
5
|
5
0450709 O-ring(10) |
0450709 |
US $0.79 |
||
|
6
|
6
0450684 Bolt-hex washer(10) |
0450684 |
US $2.45 |
||
|
7
|
7
0451749
Bracket, engine
|
0451749 |
— | ||
|
8
|
8
0450132 Bushing, rubber |
0450132 |
US $5.02 |
||
|
9
|
9
0451814
Asm-engine w/o muffler,50cc
|
0451814 |
— | ||
|
10
|
10
0450192 Washer |
0450192 |
US $5.25 |
||
|
11
|
11
0450268 Nut-flange(10) |
0450268 |
US $0.79 |
||
|
12
|
12
0451752
Bolt-hex flange,12mm
|
0451752 |
— |
