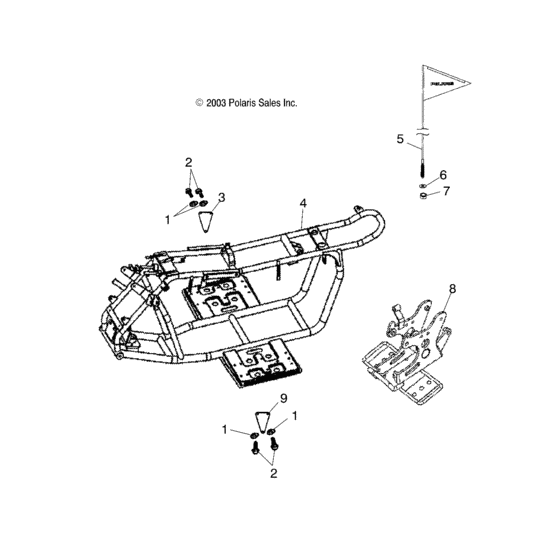

Frame body (A04KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A04KA05CA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0451702 Washer,spring |
0451702 |
US $1.49 |
||
|
2
|
2
0451754 Bolt-hex flange,8mm |
0451754 |
US $2.45 |
||
|
3
|
3
0451756
Brkt-mount,engine,rh
|
0451756 |
— | ||
|
4
|
4
0451753 Frame-main |
0451753 |
US $768.13 |
||
|
5
|
5
0450993
Flag
|
0450993 |
— | ||
|
6
|
6
0450844 Washer-spring(10) |
0450844 |
US $0.79 |
||
|
7
|
7
0450845 Nut-hex(10) |
0450845 |
US $2.45 |
||
|
8
|
8
0453373-067
Asm-swing arm,predator 50,blk
|
0453373-067 |
— | ||
|
9
|
9
0451755 Brkt-mount,engine,lh |
0451755 |
US $37.63 |
