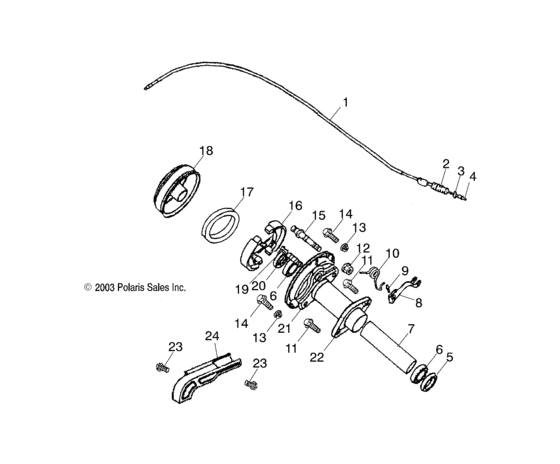

Rear brake (A04KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A04KA05CA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0451784
Cable-brake,rear
|
0451784 |
— | ||
|
2
|
2
0450435 Spring-cable,rear brake(10) |
0450435 |
US $3.64 |
||
|
3
|
3
0450437
Fixture, rear brake
|
0450437 |
— | ||
|
4
|
4
0451079 Nut,adjust,brake |
0451079 |
US $3.94 |
||
|
5
|
5
0451781 Seal-oil |
0451781 |
US $16.75 |
||
|
6
|
6
0450429 Bearing,needle |
0450429 |
US $57.10 |
||
|
7
|
7
0451780 Tube-spacer |
0451780 |
US $20.28 |
||
|
8
|
8
0451782 Arm-brake,rear |
0451782 |
US $20.65 |
||
|
9
|
9
0451783 Bolt-hex flange,6mm |
0451783 |
US $1.49 |
||
|
10
|
10
0450453 Spring,brake arm,rear |
0450453 |
US $3.64 |
||
|
11
|
11
0450451 Bolt-hex(10) |
0450451 |
US $3.75 |
||
|
12
|
12
0450881 Nut-lock,nylon(10) |
0450881 |
US $3.75 |
||
|
13
|
13
0450529 Nut-flange(10) |
0450529 |
US $3.75 |
||
|
14
|
14
0450452 Bolt,hex* |
0450452 |
US $5.22 |
||
|
15
|
15
0450854 Shaft-fix,rr brk |
0450854 |
US $12.81 |
||
|
16
|
16
0450434 Shoe,rear brake |
0450434 |
US $34.46 |
||
| replacement | |||||
|
16
|
16
0455441 Pad-Brake Rr 43120119-00B |
0455441 |
US $34.46 |
||
|
17
|
17
0450442 Rubber,protective * |
0450442 |
US $7.09 |
||
|
18
|
18
0450441 Drum,rear brake |
0450441 |
US $137.87 |
||
|
19
|
19
0450431 Shaft,cam,rear brake |
0450431 |
US $20.69 |
||
|
20
|
20
0450430 Seal-oil |
0450430 |
US $23.08 |
||
|
21
|
21
0450440 Plate,rear brake |
0450440 |
US $78.56 |
||
|
22
|
22
0451779 Housing-axle,rear |
0451779 |
US $128.80 |
||
|
23
|
23
0450325
Bolt
|
0450325 |
— | ||
|
24
|
24
0451785
Guard-chain,rear
|
0451785 |
— | ||
