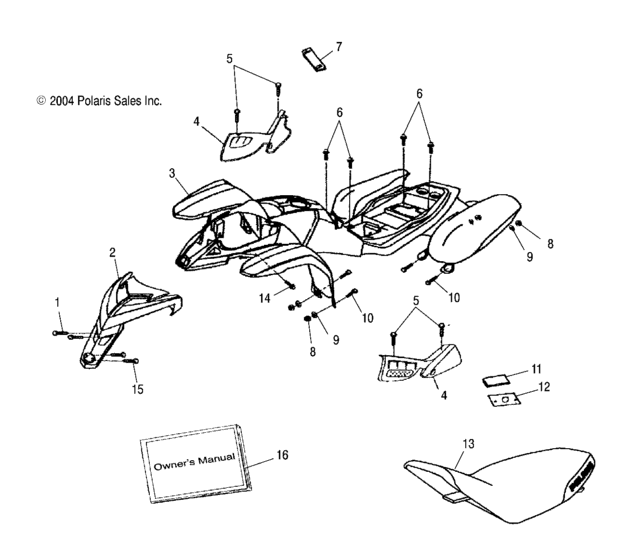

Cab/seat (A05KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A05KA05CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0451812 Screw-tapping,4mm* |
0451812 |
US $0.79 |
||
|
2
|
2
0451317-177 Cover-front,blk,m |
0451317-177 |
US $117.20 |
||
|
3
|
3
0451318-293
Cab-predator y-6,indy red
|
0451318-293 |
— | ||
|
4
|
4
0451325-070
Panel-side,lh,blk
|
0451325-070 |
— | ||
|
4
|
4
0451326-070
Panel-side,rh,blk
|
0451326-070 |
— | ||
|
5
|
5
0450676 Screw-tapping(10) * |
0450676 |
US $2.45 |
||
|
6
|
6
0450340
Bolt
|
0450340 |
— | ||
|
7
|
7
0451140 Strap-battery |
0451140 |
US $5.11 |
||
|
8
|
8
0450741 Nut,lock(10) * |
0450741 |
US $3.94 |
||
|
9
|
9
0450710 Washer-plain(10) * |
0450710 |
US $1.89 |
||
|
10
|
10
0450622 Bolt-phillips(10)* |
0450622 |
US $3.75 |
||
|
11
|
11
0450346 Foam,battery pad |
0450346 |
US $0.79 |
||
|
12
|
12
0450345 Pad,foil,protector |
0450345 |
US $25.43 |
||
|
13
|
13
0451328
Asm., seat
|
0451328 |
— | ||
|
14
|
14
0450824 Bolt-w/wshr,hex(10) |
0450824 |
US $2.45 |
||
|
15
|
15
0451766 Screw-tapping,4mm |
0451766 |
US $0.79 |
||
|
16
|
16
9919505 Man-own,05 sptmn 90 pred 50/90 |
9919505 |
US $45.68 |
