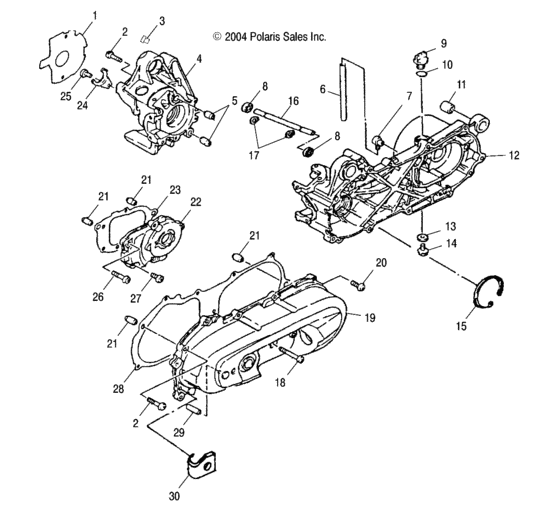

Crankcase (A05KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A05KA05CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450159
Gasket-generator *
|
0450159 |
— | ||
|
2
|
2
0450138 Bolt-socket(10) |
0450138 |
US $2.45 |
||
|
3
|
3
0450170 Plug-rubber |
0450170 |
US $3.75 |
||
|
4
|
4
0451741
Cover, crankcase, rh
|
0451741 |
— | ||
|
5
|
5
0450137 Pin-dowel (10) |
0450137 |
US $2.77 |
||
|
6
|
6
0451670
Hose,breather
|
0451670 |
— | ||
|
7
|
7
0450133 Head-breather,hose |
0450133 |
US $3.64 |
||
|
8
|
8
0451740 Bearing |
0451740 |
US $35.46 |
||
|
9
|
9
0451813 Plug-oil |
0451813 |
US $3.26 |
||
|
10
|
10
0450154
O-ring
|
0450154 |
— | ||
|
11
|
11
0450132 Bushing, rubber |
0450132 |
US $5.02 |
||
|
12
|
12
0451094
Crankcase, lh
|
0451094 |
— | ||
|
13
|
13
0450156
Washer
|
0450156 |
— | ||
|
14
|
14
0450298 Bolt-hex(10) * |
0450298 |
US $3.75 |
||
|
15
|
15
0450162 Circlip-internal (10) |
0450162 |
US $3.94 |
||
|
16
|
16
0451742
Shaft-crankcase
|
0451742 |
— | ||
|
17
|
17
0450198 Circlip-external (10) |
0450198 |
US $2.45 |
||
|
18
|
18
0450151 Bolt-socket,hex(10) |
0450151 |
US $3.75 |
||
|
19
|
19
0451743
Cover-crankcase,left
|
0451743 |
— | ||
|
20
|
20
0450148 Bolt-socket,hex(10) |
0450148 |
US $1.89 |
||
|
21
|
21
0450142 Pin-dowel |
0450142 |
US $1.49 |
||
|
22
|
22
0450139 Cover-mission |
0450139 |
US $61.06 |
||
|
23
|
23
0450140
Gasket-cover,mission *
|
0450140 |
— | ||
|
24
|
24
0450157 Bracket-oil seal |
0450157 |
US $4.34 |
||
|
25
|
25
0450158 Bolt-socket,hex(10) |
0450158 |
US $1.49 |
||
|
26
|
26
0450143 Bolt-pan,socket(10) |
0450143 |
US $1.89 |
||
|
27
|
27
0450039 Bolt-socket(10) * |
0450039 |
US $1.89 |
||
|
28
|
28
0450141
Gasket-crankcase cover,lh
|
0450141 |
— | ||
|
29
|
29
0450147
Shaft
|
0450147 |
— | ||
|
30
|
30
0450160 Bracket-carburetor tube |
0450160 |
US $2.28 |
