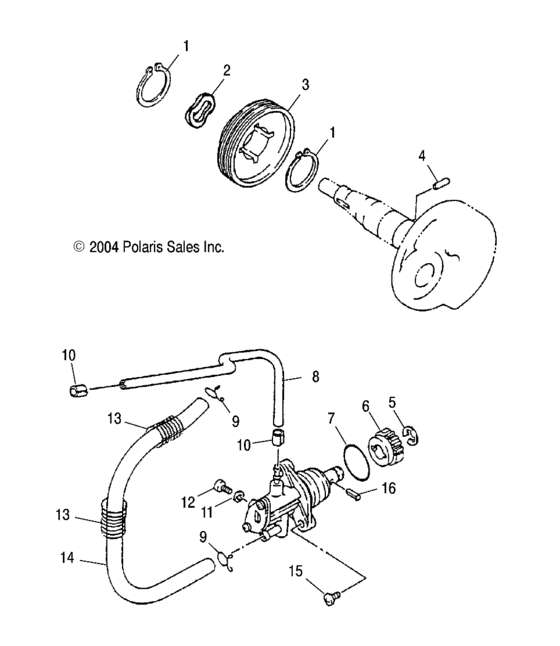

Oil pump assembly (A05KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A05KA05CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450060 Circlip-external(10) |
0450060 |
US $6.56 |
||
|
2
|
2
0450655 Washer-wave(10) |
0450655 |
US $1.49 |
||
|
3
|
3
0450058 Gear-drive,oil pump |
0450058 |
US $25.43 |
||
|
4
|
4
0450059 Pin-dowel (10) |
0450059 |
US $2.45 |
||
|
5
|
5
0450052 Circlip-external(10) |
0450052 |
US $1.89 |
||
|
6
|
6
0451725 Gear-oil pump |
0451725 |
US $11.73 |
||
|
7
|
7
0450047 O-ring(10) |
0450047 |
US $2.28 |
||
|
8
|
8
0450055 Tube-oil * |
0450055 |
US $9.15 |
||
|
9
|
9
0450054 Clip(10) * |
0450054 |
US $1.49 |
||
|
10
|
10
0450056 Clip(10)* |
0450056 |
US $1.49 |
||
|
11
|
11
0450046 Washer(10) |
0450046 |
US $0.79 |
||
|
12
|
12
0451723
Bolt-phillips,pan
|
0451723 |
— | ||
|
13
|
13
0451728
Spring-pipe protective
|
0451728 |
— | ||
|
14
|
14
0450363-430
Line, fuel
|
0450363-430 |
— | ||
|
15
|
15
0450977 Bolt, hex |
0450977 |
US $3.75 |
||
|
16
|
16
0451726 Pin-shaft |
0451726 |
US $2.28 |
