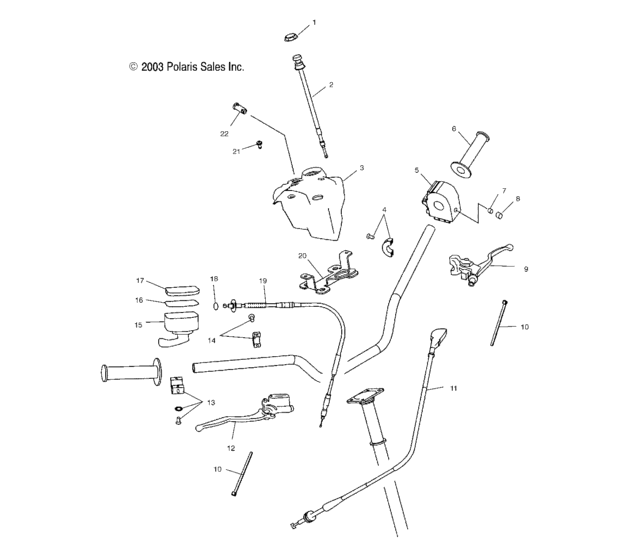

Controls (A04GJ50AA/AB/AC/AD) Diagram Polaris PREDATOR 500
- Model code
- A04GJ50AA/AB/AC/AD
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080922 Nut,choke,m24x1,5 thd,m29 hex |
7080922 |
US $4.73 |
||
|
2
|
2
7081097
Cable, choke
|
7081097 |
— | ||
|
3
|
3
5434451-070 Panel-instrument,blk |
5434451-070 |
US $19.30 |
||
|
5
|
5
4010594
Switch, handlebar
|
4010594 |
— | ||
|
6
|
6
5434628-070
Grip, handlebar
|
5434628-070 |
— | ||
|
7
|
7
7517625 Screw,set |
7517625 |
US $2.98 |
||
|
8
|
8
5432952 Plug,hole |
5432952 |
US $3.15 |
||
|
10
|
10
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
11
|
11
7081034 Cable-clutch |
7081034 |
US $136.90 |
||
|
13
|
13
2010191 Asm-throttle clamp |
2010191 |
US $18.32 |
||
|
15
|
15
2010204
Asm., throttle control, 2x4
|
2010204 |
— | ||
|
16
|
16
5411439 O-ring (10) |
5411439 |
from US $2.66 |
||
|
17
|
17
5434113 Cover-throttle control |
5434113 |
US $19.20 |
||
|
18
|
18
5410193 O ring |
5410193 |
US $1.66 |
||
|
19
|
19
7080967 Cable-throttle,1/4 turn,4 stk |
7080967 |
US $63.95 |
||
|
20
|
20
5246383 Brkt-instrument panel |
5246383 |
US $59.36 |
||
|
21
|
21
7518176 Scr-10-24x1/2 ph/tx/trird/semb |
7518176 |
US $3.26 |
||
|
22
|
22
4010728 Indicator-hot light |
4010728 |
US $25.43 |
||
|
22
|
22
4010729 Indicator-neutral light |
4010729 |
US $25.43 |
