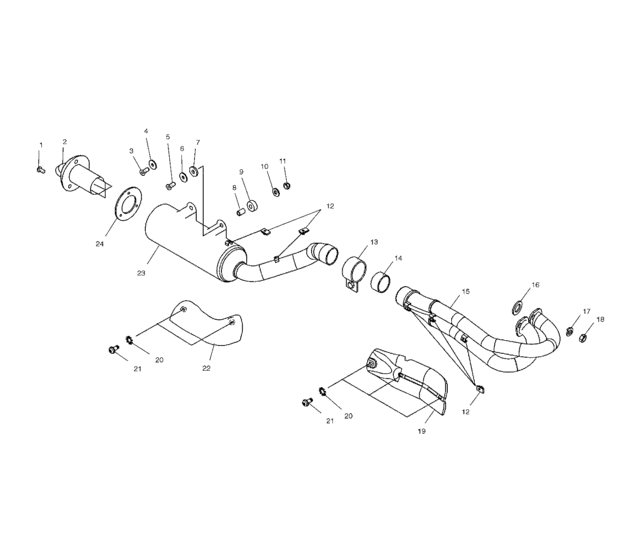

Exhaust system (A03GJ50AA/AB) Diagram Polaris PREDATOR 500
- Model code
- A03GJ50AA/AB
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517257 Screw,hxflghd,m6x12 |
7517257 |
US $7.68 |
||
|
2
|
2
1261248 Weld-spark arrestor |
1261248 |
US $121.71 |
||
|
3
|
3
7515301 BoltIf built before 10/25/02; |
7515301 |
US $3.26 |
||
|
3
|
3
7512392 BoltIf built after 10/25/02; |
7512392 |
US $3.75 |
||
|
4
|
4
7552901 Washer,spring lock(10)If built after 10/25/02; |
7552901 |
US $39.40 |
||
|
5
|
5
7515339 Bolt |
7515339 |
US $3.26 |
||
|
6
|
6
7555959 Washer,flat |
7555959 |
US $3.94 |
||
|
7
|
7
5412289 Washer-rubber,1,50x1,00x,31 |
5412289 |
US $7.68 |
||
|
8
|
8
5334210 Spacer-,62 od x,46 id x,64 |
5334210 |
US $2.45 |
||
|
9
|
9
5410241
Dampener, vibration
|
5410241 |
— | ||
|
10
|
10
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
11
|
11
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
12
|
12
7547247 Nut-u,chimney,10-24-b (10)If built after 10/15/02; |
7547247 |
US $1.89 |
||
|
13
|
13
7081139 Clamp-muffler |
7081139 |
US $23.94 |
||
|
14
|
14
5246375 Seal-exhaust,2,13x2,0x1,0 |
5246375 |
US $26.60 |
||
|
15
|
15
1261197
Headpipe
If built before 2/03/03; |
1261197 |
— | ||
|
15
|
15
1261308
Headpipe
If built after 2/03/03; |
1261308 |
— | ||
|
16
|
16
3087957 Asm,,gasket exhaust |
3087957 |
US $35.12 |
||
|
17
|
17
3080530 Washer, spring lock |
3080530 |
US $1.89 |
||
|
18
|
18
3087199 Nut |
3087199 |
US $1.49 |
||
|
19
|
19
5246621-385
Shield-exhaust,front,slv
|
5246621-385 |
— | ||
|
20
|
20
7571602 WasherIf built after 10/15/02; |
7571602 |
US $2.45 |
||
|
21
|
21
7512048 ScrewIf built before 10/15/02; |
7512048 |
US $2.45 |
||
|
21
|
21
7512084 Screw(10)If built after 10/15/02; |
7512084 |
US $19.60 |
||
|
22
|
22
5246620-385
Shield, exhaust, rear, silver
|
5246620-385 |
— | ||
|
23
|
23
1261198
Silencer
|
1261198 |
— | ||
|
24
|
24
5812422
Gasket-spark arrestor
|
5812422 |
— |
